Removing Rear Head Restraint - AR91.16-P-1770GQ
MODEL 166.8
with CODE 843 (Electric EASY-ENTRY) 2nd seat row
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of the mechanism when the components are moving. | AS00.00-Z-0009-01A | |
| Remove/install | |||

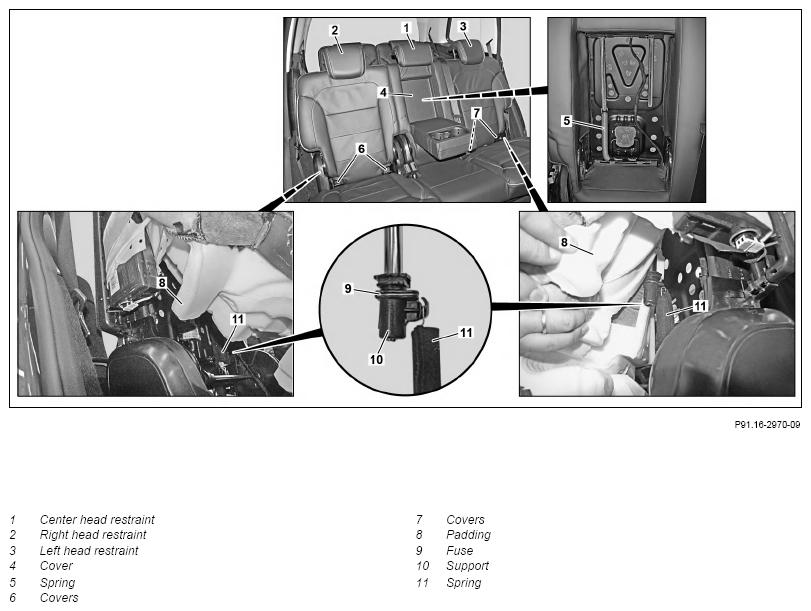

| Remove center head restraint (1) | |||
| 1 | Remove armrest | AR91.12-P-1750GQ | |
| 2 | Remove cover (4) | ||
| 3 | Unhook spring (5) from center head restraint (1) | ||
| 4 | Pull center head restraint (1) out of left rear seat backrest | ||
| Remove right head restraint (2) and left head restraint (3) | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 5 | Disconnect battery ground cable | AR54.10-P-0003GZ | |
| 6 | Unclip covers (6 and 7) | ||
| 7 | Fold right or left rear seat backrest forward | ||
| 8 | Release cover from frame of right and left rear seat backrest | Fig 2 | |
| 9 | Raise right and left rear seat backrest | ||
| 10 | Release cover with padding (8) from right and left rear seat backrest | Otherwise the cover could become damaged. |
|
| 11 | Remove retainer (9) from mount (10) at right head restraint (2) and left head restraint (3) | ||
| 12 | Pull right head restraint (2) and left head restraint (3) out of right or left rear seat backrest | ||
| 13 | Install in the reverse order |
