Remove/Install Split Rear Seat Backrest Arm Rest - AR91.12-P-1750GQ

Model 166, 292

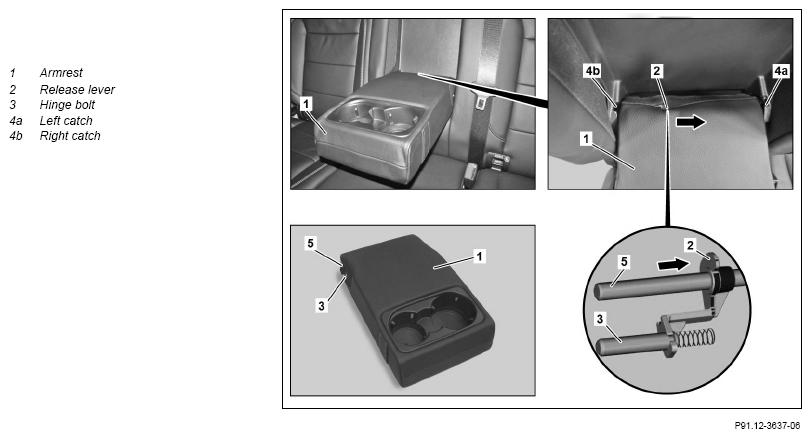

Fig 1: Split Rear Seat Backrest Arm Rest Components Location - Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Fold armrest (1) out of rear backrest
2	Press release lever (2) to left (arrow) until hinge bolt (3) releases armrest (1)	The release lever (2) can be operated with a finger through the seam opening.
3	Release armrest (1) from right mount (4b)
4	Remove armrest (1) from left mount (4a) and right mount (4b)	Ensure correct seating of hinge bolt (3) in left mount (4a) and in right mount (4b).
5	Install in the reverse order
