Remove/Install Dashboard Carrier - AR68.10-P-1111GQ

Model 166, 292

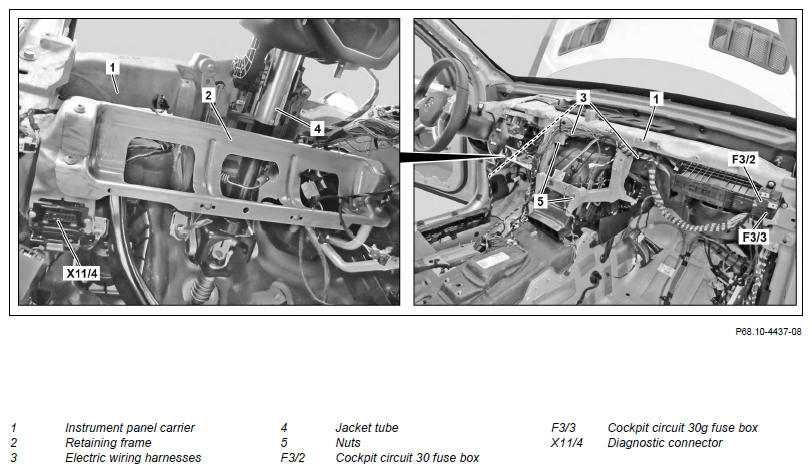

Fig 1: Instrument Panel/Dashboard Carrier Components Location - Model 166

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove top part of dashboard		AR68.10-P-1020GQ
2	Remove retaining frame (2) from driver kneebag	Bolt, bracket for kneebag to cross member	*BA91.60-P-1018-01H
3	Remove fuse boxes (F3/2, F3/3) from instrument panel carrier (1)
4	Disconnect electrical connector from diagnostic connector (X114)
5	Remove electrical wiring harnesses (3) from instrument panel carrier (1)	Check that electrical wiring harnesses (3) are routed correctly.
6	Remove steering column tube (4)		AR46.10-P-0400GQ
7	Unscrew nuts (5)
8	Unscrew bolts from instrument panel carrier (1)	Screw/bolt, instrument panel crossmember to firewall	*BA68.10-P-1001-01B
		Screw/bolt, instrument panel crossmember to A-pillar	*BA68.10-P-1002-01B
		Screw/bolt, instrument panel crossmember to transmission tunnel	*BA68.10-P-1003-01B
9	Carefully lift electrical wiring harnesses (3) and remove instrument panel carrier (1) at side through right front door	Helper required.
10	Install in the reverse order

INSTRUMENT PANEL

Number	Designation		Model 166	Model 292
BA68.10-P-1001-01B	Screw/bolt, instrument panel crossmember to firewall	Nm	25	25

INSTRUMENT PANEL

Number	Designation		Model 166	Model 292
BA68.10-P-1002-01B	Screw/bolt, instrument panel crossmember to A-pillar	Nm	25	25

INSTRUMENT PANEL

Number	Designation		Model 166	Model 292
BA68.10-P-1003-01B	Screw/bolt, instrument panel crossmember to transmission tunnel	Nm	25	25

AIRBAG

Number	Designation		Model 166	Model 292
BA91.60-P-1018-01H	Bolt, bracket for kneebag to cross member	Nm	6	6
