Retrofit Unilluminated Door Sill Molding - AZ68.30-P-0005GQ

Model 166

Courtesy of MERCEDES-BENZ USA

	Remove

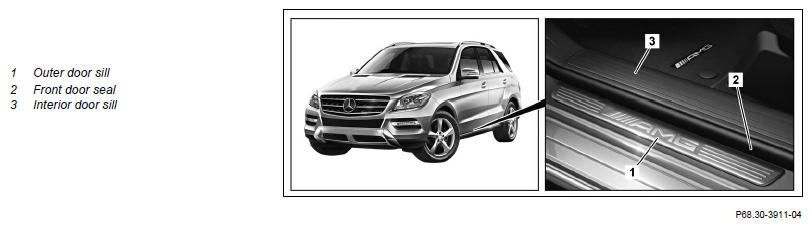

1	Remove interior door sill (3) on left and right
			AR68.30-P-4100GQ
2	Remove front door seal (2) in area of outer door sill (1) on left and right
3	Remove outer door sill (1) on left and right
			AR88.80-P-1001GQ
	Install
4	Clean assembly area of outer door sill (1) on left and right	Bonding surface should be free of grease and dust. Otherwise proper adhesion of the outer door sill (1) is not ensured. Use commercially available surface conditioning disk with a diameter of 100 mm with mounting shaft.
		Cleaner	*BR00.45-Z-1025-04A
5	Install outer door sill (1) on left and right
			AR88.80-P-1001GQ
		Standard outer door sills (1) are replaced by new door sill accessories.
6	Install front door seal (2) in area of outer door sill (1) on left and right
7	Install inner door sill (3) on left and right
			AR68.30-P-4100GQ

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71

PARTS ORDERING NOTE

Part no.	Designation	Quantity
A 166 680 23 35	AMG door sills not illuminated (parts kit), 2 sills	1
