Remove/Install Touchpad Control Unit - AR54.21-P-0503GQA
Model 166 as of model year 2016 with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
Model 166 as of model year 2016 with code 531 (COMAND® APS)
Model 292 with code 522 (Audio 20 CD including preinstallation for Garmin® MAP PILOT)
Model 292 with code 531 (COMAND® APS)

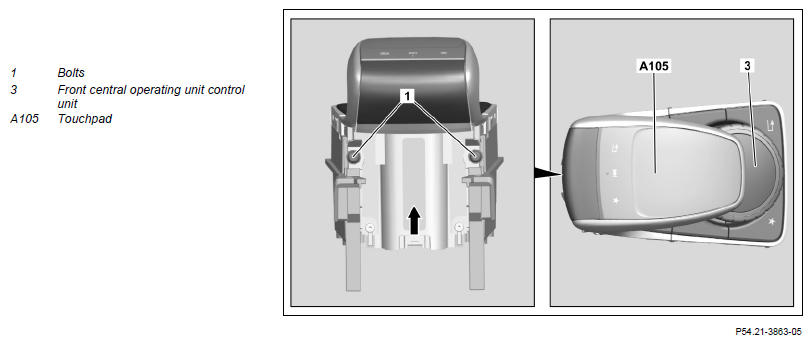

Fig 1: Touchpad Control Unit Components Location - Model 166 As Of Model Year 2016 With Code 522, 531
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove front central operating unit control unit (3) | AR54.21-P-0500GQA | |
| 2 | Unscrew bolts (1) | ||
| 3 | Pull touchpad (A105) out of front central operating unit control unit (3) (arrow) | ||
| 4 | Install in the reverse order | ||
| 5 | Commission touchpad (A105) | Only when replacing the touchpad (A105). | |
| AD00.00-P-2000-04A |
