Remove/Install Front Central Operating Unit - AR54.21-P-0500GQA
Model 166 as of model year 2016
Model 292
MODIFICATION NOTES
| 18.05.2017 | Run commissioning and remove touchpad when replacing the Audio/COMAND® control panel incorporated. |

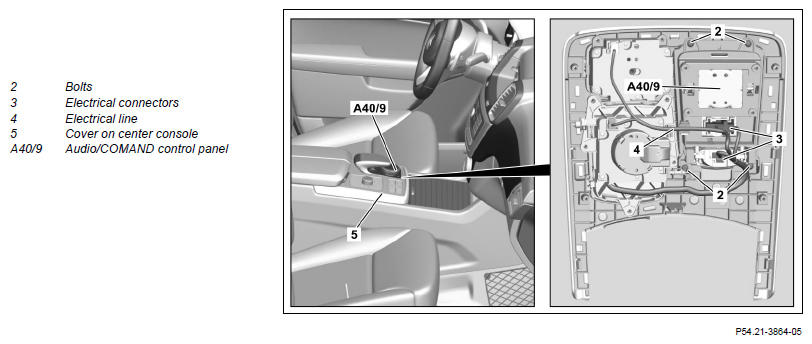

Shown on model 292 with CODE 531 (COMAND® APS)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove cover from center console (5) far enough until electrical connectors (3) are accessible | AR68.20-P-2350GQA | |
| 3 | Disconnect electrical connectors (3) and unclip electric line (4) | ||
| 4 | Unscrew bolts (2) | ||
| 5 | Remove Audio/COMAND® control panel (A40/9) | ||
| 6 | Remove touchpad | Model 166 as of model year 2016 with code 531 (COMAND® APS) Model 292 with code 531 (COMAND® APS) Only when replacing Audio/COMAND® control panel (A40/9) |
AR54.21-P-0503GQA |
| 7 | Install in the reverse order | ||
| 8 | Commission Audio/COMAND® control panel (A40/9) | Only when replacing Audio/COMAND® control panel (A40/9) | |
| AD00.00-P-2000-04A |
