Remove/Install Radar Sensor For Driver Assistance System In Rear Bumper - AR54.71-P-0003GQ
Model 166
with code 238 (Active lane keeping Assist)
Model 166
with code 253 (Rear impact warning and protection system)

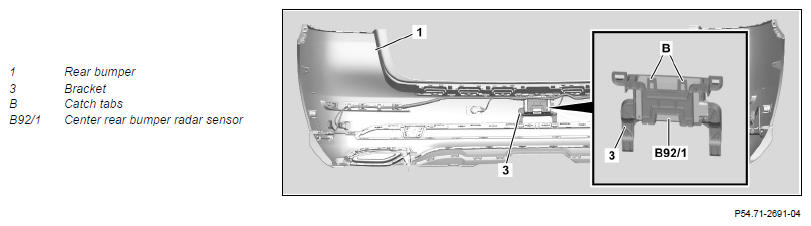

Fig 1: Radar Sensor For Driver Assistance System In Rear Bumper Components Location - Model 166 with code 238, 253
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of center rear bumper radar sensor (B92/1) | When replacing the center rear bumper radar sensor (B92/1). | |
| AD00.00-P-2000-04A | |||
| 2 | Remove rear bumper (1) | Model 166.8 | AR88.20-P-2200GQA |
| MODEL 166.0 | AR88.20-P-2200GQ | ||
| 3 | Disconnect electrical connector from center rear bumper radar sensor (B92/1) and unclip electrical line from bracket (3) | ||
| 4 | Remove bracket (3) with center rear bumper radar sensor (B92/1) | ||
| 5 | Release catch tabs (B) on bracket (3) using a suitable tool and pull center rear bumper radar sensor (B92/1) out of bracket (3) upwards | ||
| 6 | Install in the reverse order |
