Remove/Install Night View Assist Control Unit - AR54.30-P-3100GQ
MODEL 166 with CODE (610) Night vision assist
Shows model 166.024

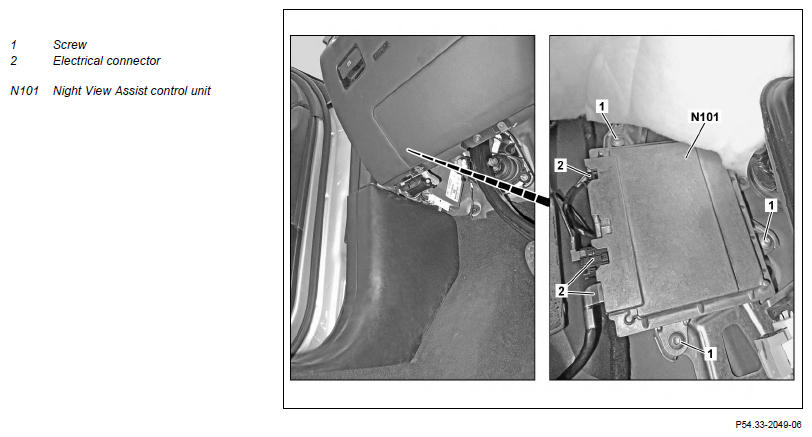

Fig 1: Night View Assist Control Unit Components Location - Model 166 With Code 610 (Shown On Model 166.024)
| Remove/install | |||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| 1 | Switch off ignition | ||
| 2 | Remove left-hand panel under dashboard | AR68.10-P-1500GQ | |
| 3 | Detach video and radar sensor system control unit from bracket and place down with attached lines | If installed. | AR54.65-P-0040GQ |
| 4 | Remove bolt (1) | ||
| 5 | Release and detach electrical connections (2) then remove Night View Assist control unit (N101) | ||
| 6 | Install in the reverse order | ||
| 7 | Read out fault memory using STAR DIAGNOSIS and calibrate Night View Assist camera with calibration target | After replacing the Night View Assist control unit (N101) Calibration target for Night Vision Assist |
AD00.00-P-2000-04A |
