Remove/Install Radar Sensors Control Unit - AR54.65-P-0040GQ
Model 166, 292
with code 233 (DISTRONIC PLUS)
Model 166, 292
with code 237 (Active Blind Spot Assist)
Model 166, 292
with code 238 (Active lane keeping Assist)

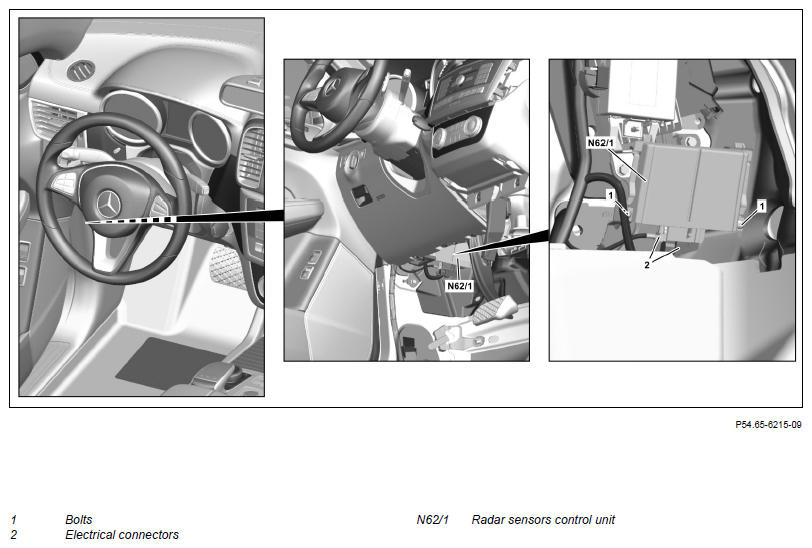

Fig 1: Radar Sensors Control Unit Components Location - Model 166 with code 233, 237 And 238 (Shown On Model 292)
Shown on MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform initial startup of radar sensors control unit (N62/1) | When replacing radar sensors control unit (N62/1). | |
| AD00.00-P-2000-04A | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove left-hand panel under instrument panel | AR68.10-P-1500GQ | |
| 4 | Unscrew bolts (1) | ||
| 5 | Release and disconnect electrical connectors (2) | ||
| 6 | Remove radar sensors control unit (N62/1) | ||
| 7 | Install in the reverse order |
