Remove/Install Interior Compartment Prefuse Box - AR54.15-P-1350GQ
Model 166, 292
Shown on model 166
Shown on model 166
Shown on model 166
| Remove/install | |||
| 1 | Remove right front seat | AR91.10-P-1000GQ | |
| 2 | Remove lower paneling of right B-pillar | AR68.30-P-4700GQ | |

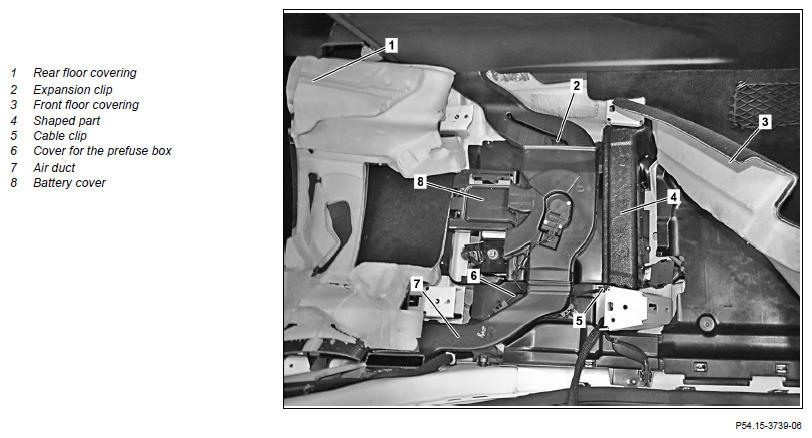

| 3 | Move rear floor covering (1) to one side | ||
| 4 | Place front floor covering (3) to one side | ||
| 5 | Remove air duct (7) | ||
| 6 | Unclip expansion clip (2) | Fig 2 | |
| 7 | Unhook cable clip (5) from cover on prefuse box (6) | ||
| 8 | Release battery cover (8) and place to one side with line attached | ||
| 9 | Remove shaped part (4) | ||

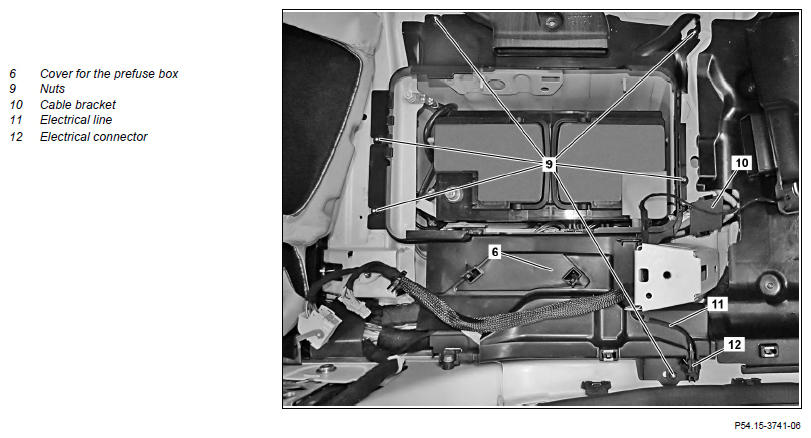

| 10 | Unscrew nuts (9) from cover on prefuse box (6) | ||
| 11 | Unhook electrical connection (12) and electrical line (11) from cover of prefuse box (6) | ||
| 12 | Remove cover from prefuse box (6) | ||
| Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries | No fires, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and glasses. Only pour battery acid into suitable and appropriately marked containers. | AS54.10-Z-0001-01A | |
| 13 | Remove battery | AR54.10-P-0005GZ | |
| Notes on battery | AH54.10-P-0001-01A | ||
| 14 | Disconnect positive line from prefuse box | *BA54.15-P-1001-01L | |
| 15 | Remove cable bracket (10) | ||

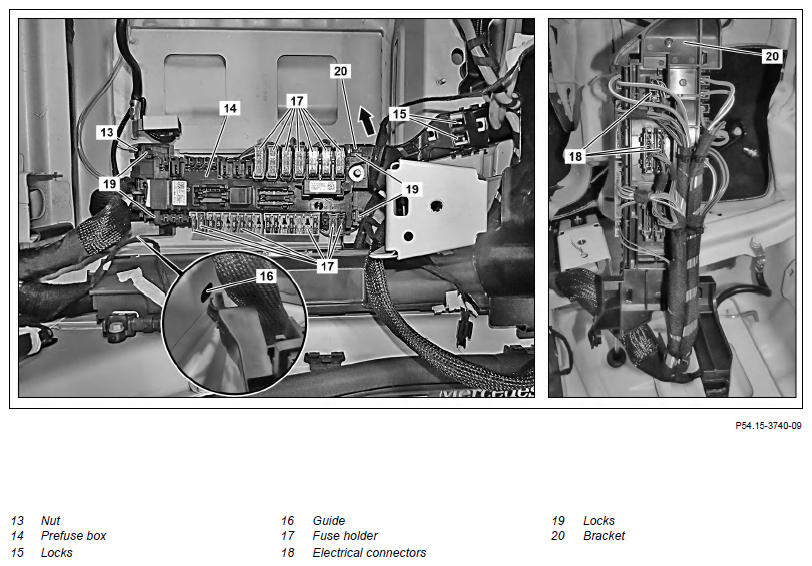

| 16 | Unscrew nut (13) | ||
| 17 | Release locks (15) and swivel bracket (20) with prefuse box (14) inwards in direction of arrow and out of the guide (16) | ||
| 18 | Unclip fuse holder (17) | ||
| 19 | Detach electrical connections (18) from prefuse box (14) | ||
| 20 | Release locks (19) and remove prefuse box (14) from bracket (20) | ||
| 21 | Change relays and fuses | When replacing the prefuse box. |
|
| 22 | Install in the reverse order |
FUSE AND RELAY BOX
| Number | Designation | Model 166 | Model 292 | ||
|---|---|---|---|---|---|
| BA54.15-P-1001-01L | Nut, positive line to engine compartment/vehicle interior prefuse box | M6 | Nm | 8 | 8 |
| M8 | Nm | 16 | 16 | ||
