Remove/Install Paneling On B-Pillar - AR68.30-P-4700GQ

Model 166, 292

Shown on model 166 with CODE 494 (USA version)

Courtesy of MERCEDES-BENZ USA

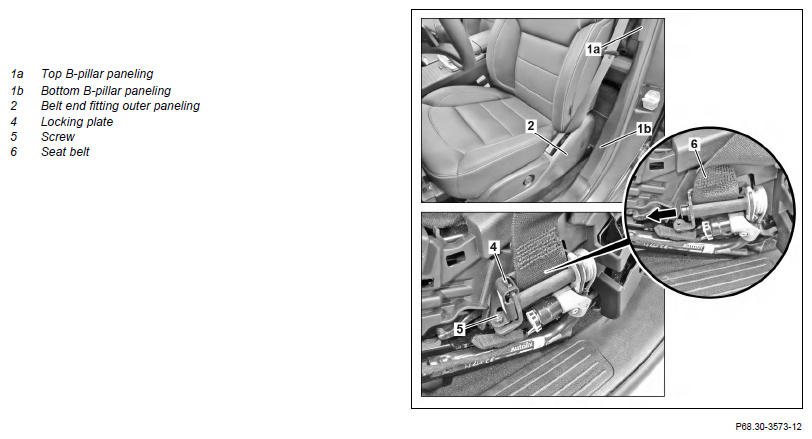

Fig 1: Paneling On B-Pillar Components Location - Model 166 (Shown With Code 494)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front and rear door sill		AR68.30-P-4100GQ
2	Move front seat forward and move backrest to vertical position
3	Remove belt end fitting outer paneling (2)		AR91.10-P-1200GQ
4	Remove screw (5)	Model 166, 292 with code 494 (US version)
		Bolt, locking plate on belt end fitting/tensioner	*BA91.40-P-1002-01R
5	Remove tab washer (4)	Model 166, 292 with code 494 (US version)
6	Pull seat belt (6) toward front (arrow) out of guide on front seat	Model 166, 292 with code 494 (US version) Do not twist seat belt (6).
7	Remove bolt from belt end fitting	Model 166, 292 with code 494 (US version)
		Bolt, belt end fitting/tensioner on front seat	*BA91.40-P-1001-01R
8	Loosen edge guard at front and rear in area of upper B-pillar paneling (1a) and lower B-pillar paneling (1)
9	Unclip upper B-pillar paneling (1a) from B-pillar	Ensure that retaining clips (3) are seated correctly.
		Mounting wedge	Fig 2
10	Pull upper B-pillar paneling (1a) downward out of guide on roof and remove	It is necessary to insert guide (7) into bolt (8).
11	Unclip lower B-pillar paneling (1b) on B-pillar and remove	Ensure that retaining clips (3) are seated correctly.
		Mounting wedge	Fig 2
12	Install in the reverse order

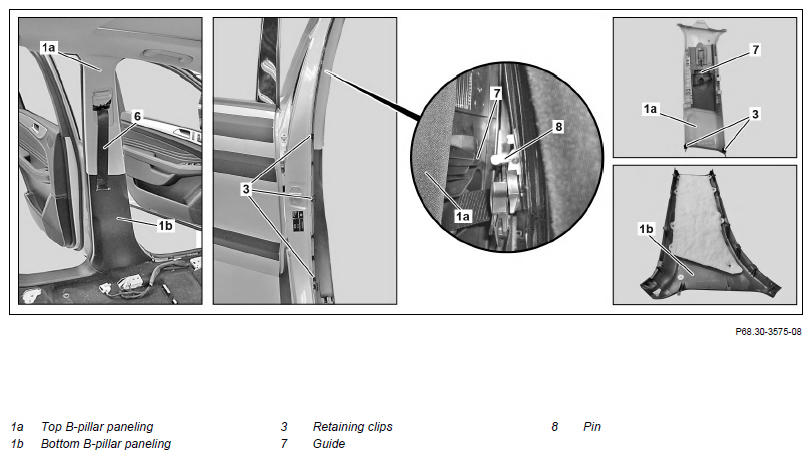

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
