Remove/Install Rear Floor Covering - AR68.20-P-4800GQX

MODEL 166.8

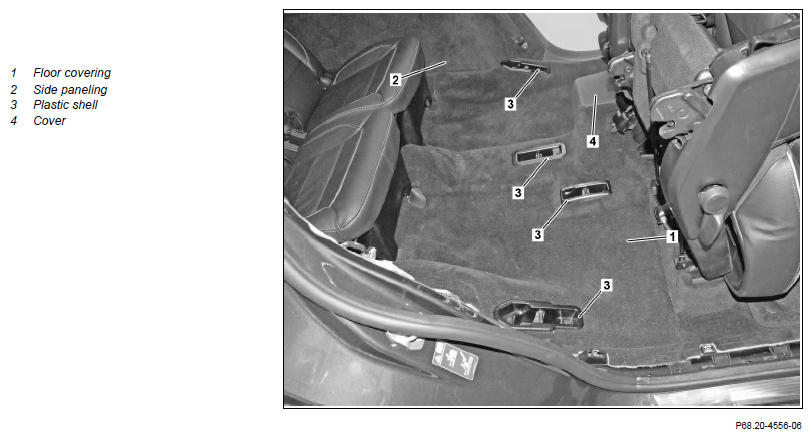

Fig 1: Rear Floor Covering Components Location - Model 166.8

Courtesy of MERCEDES-BENZ USA

Shown on removed center console

Courtesy of MERCEDES-BENZ USA

	Remove/install
	When removing rear floor covering
1	Fold rear seats toward front
2	Remove door sill from rear doors		AR68.30-P-4100GQ
3	Remove cover (4)
4	Remove plastic shells (3)
5	Pull out floor covering (1) below side paneling (2)	Ensure that floor covering (1) is laid correctly below side paneling (2).
		Long wedge	Fig 3
		Mounting wedge	Fig 2
6	Remove floor covering (1)	Ensure that floor covering (1) is routed correctly on frame floor. Otherwise the electrical lines can be damaged Helper required.
	When removing front floor covering
7	Remove front seats		AR91.10-P-1000GQ
8	Remove rear seats	MODEL 166.82nd seat row	AR91.12-P-1000GQ
9	Remove door sill from front and rear doors		AR68.30-P-4100GQ
10	Pull floor covering (5) out below B-pillar paneling (6)	Ensure that floor covering (5) is laid correctly below B-pillar paneling (6).
		Long wedge	Fig 3
		Mounting wedge	Fig 2
11	Pull out floor covering (5) toward rear below center console	Ensure that floor covering (5) is laid correctly below center console.
		Long wedge	Fig 3
		Mounting wedge	Fig 2
12	Remove floor covering (5)	Ensure that floor covering (5) is routed correctly on frame floor. Otherwise the air ducting and electrical lines can be damaged. Helper required.
13	Install in the reverse order

Fig 2: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
