Remove/Install Rear Shock Absorber - AR32.25-P-0110GQX

MODEL 166, 292

Shown on model 166.873

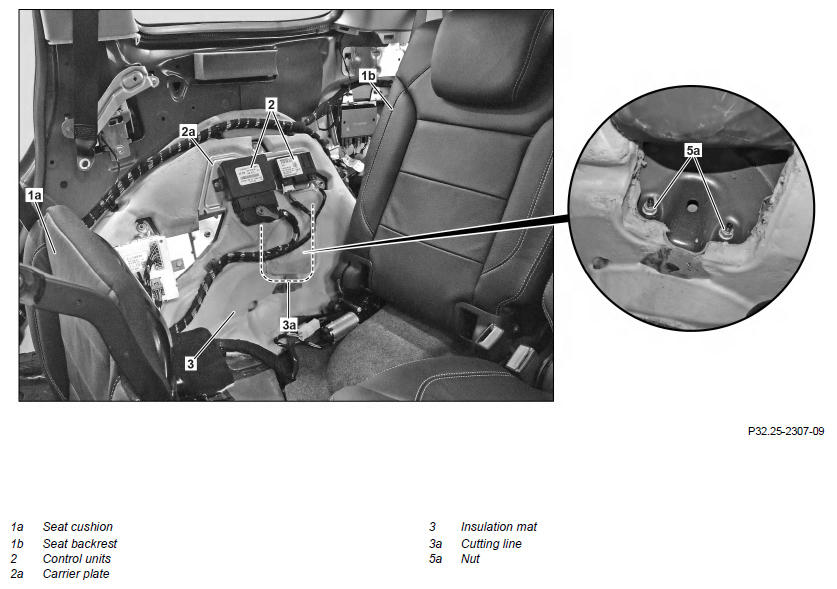

G11972489

Shown on model 166.873

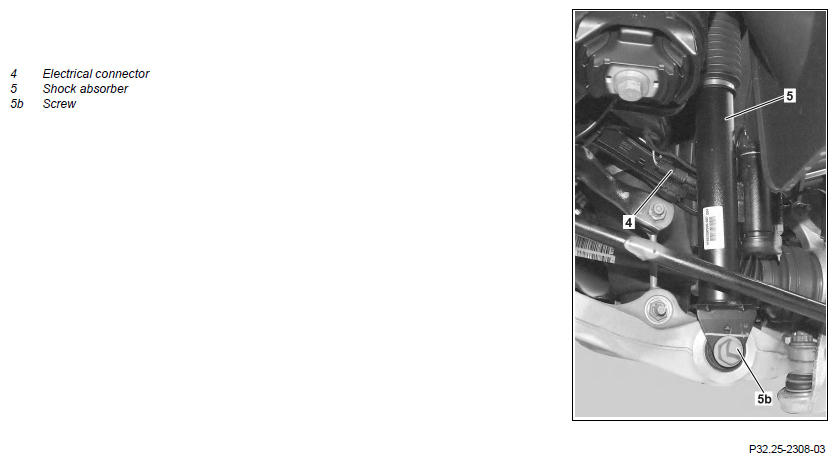

G11972490
  Risk of injury  . Moving parts can pinch, crush or, in extreme cases even sever extremities. No parts of the body or limbs should be within the operating range of the mechanism when moving components. AS00.00-Z-0009-01A
NOTES Notes on self-locking nuts and bolts   AH00.00-N-0001-01A
IMPORTANT Notes on repair work on suspension components   AH00.00-P-0100-01A
REMOVINGINSTALLING Remove/install
1 Remove side paneling in trunk Model 166.0 AR68.30-P-4800GQ
    Model 166.8 AR68.30-P-4800GQX
    Model 292 AR68.30-P-4800GQC
2 Remove bolt from rear end center assembly lining Model 292
3 Unclip and remove rear end center assembly lining Model 292
4 Remove seat cushion (1a) of backrest (1b) in 3rd seat row and fold forward Model 166.8
TORQUE SPECIFICATION Screw/bolt, seat cushion to rear seat console		 *BA91.12-P-1004-03F
5 Remove control units (2) with connected lines from carrier plate (2a) and place to one side Model 166.8
6 Cut insulation mat (3) along the marked cutting line (3a) and fold up NOTES Carefully cut the insulation mat (3) and fold up. Otherwise the paint or the insulation mat (3) may get damaged.
NOTES The insulation mat must be sealed before installation.
Otherwise, proper operation can no longer be guaranteed.
7 Secure vehicle on vehicle lift   AR00.60-P-0100GZ
8 Detach rear complete wheel
REFER TO MAINTENANCE   Model 166 AP40.10-P-4050EW
    Model 292 AR40.10-P-1100GQC
9 Remove fender liner in the rear fender   AR88.10-P-1400GQ
10 Release and disconnect electrical connection (4) Model 166, 292 with code 489 (AIRMATIC)
11 Raise wheel suspension slightly at supporting joint
REFER TO SPECIAL TOOLS 000 588 10 62 00 Support plate   WS26.00-P-3309B
REFER TO SPECIAL TOOLS 000 588 11 62 00 Major assembly mount NOTES Wheel suspension must be supported. Otherwise the steel spring may come out or the air spring can be damaged. WS01.00-P-0092B
12 Unscrew nuts (5a) TORQUE SPECIFICATION Self-locking nut, shock absorber to frame floor *BA32.25-P-1002-03K
13 Remove bolt (5b) TORQUE SPECIFICATION Self-locking nut, shock absorber to spring control arm *BA32.25-P-1001-03K
14 Slide damper (5) together and remove
15 Install in the reverse order
INSPECT Check
16 Check shock absorber (5)   AR32.25-P-0121CW
17 Install in the reverse order
REAR AXLE SHOCK ABSORBER

Number Designation Model 166 except code 489 (AIRMATIC) Model 166 with code 489 (AIRMATIC)
BA32.25-P-1001-03K Self-locking nut, shock absorber to spring control arm Stage 1 Nm 180 120
Stage 2 ∠° 90 90
REAR AXLE SHOCK ABSORBER

Number Designation Model 292 except code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC)
BA32.25-P-1001-03K Self-locking nut, shock absorber to spring control arm Stage 1 Nm 180 120
Stage 2 ∠° 90 90
REAR AXLE SHOCK ABSORBER

Number Designation Model 166 except code 489 (AIRMATIC) Model 166 with code 489 (AIRMATIC)
BA32.25-P-1002-03K Self-locking nut, shock absorber to frame floor Stage 1 Nm 25 25
Stage 2 Nm 35 35
REAR AXLE SHOCK ABSORBER

Number Designation Model 292 except code 489 (AIRMATIC) Model 292 with code 489 (AIRMATIC)
BA32.25-P-1002-03K Self-locking nut, shock absorber to frame floor Stage 1 Nm 25 25
Stage 2 Nm 35 35
REAR SEATS

Number Designation Model 166.8
BA91.12-P-1004-03F Screw/bolt, seat cushion to rear seat console Nm 25
