Remove/Install Right Rear Seat Backrest Cover - AR91.18-P-1878GQ
MODEL 166
Illustrated on model 166.0
| Remove/install | |||
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by performing testing or repair work on airbag or emergency tensioning retractor units. | Store airbag units with deployment side facing up; do not expose to temperatures greater than 100 °C. When working on these units, disconnect the power supply. | AS91.00-Z-0001-01A | |
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| Legal requirements on handling and storing airbags and emergency tensioning retractor units | AH91.00-P-0004-01A | ||
| 1 | Remove rear seat backrest | MODEL 166.0 40% rear seat |
AR91.12-P-1620GQA |
| 2 | Remove right rear seat | MODEL 166.8 2nd seat row |
AR91.12-P-1000GQ |
| 3 | Remove head restraint guides of rear seat backrest | MODEL 166 2nd seat row |
AR91.16-P-1775GZ |

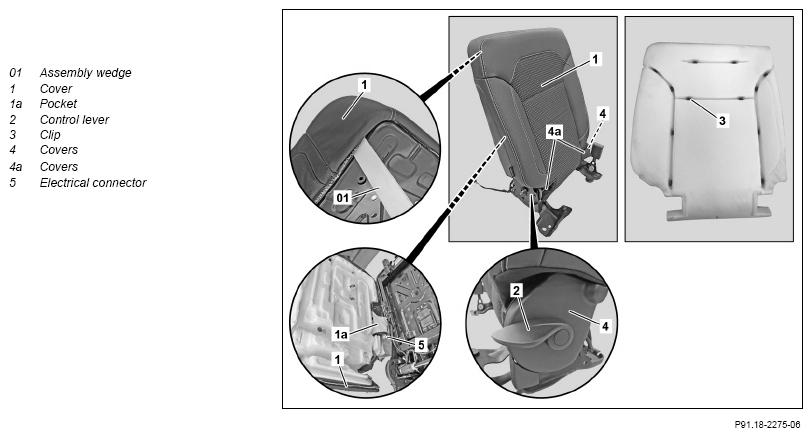

| 4 | Unclip adjustment lever (2) from rear seat backrest frame | MODEL 166.0 | |
| 5 | Remove covers (4) | MODEL 166.0 | |
| 6 | Unclip covers (4). | ||
| 7 | Remove paneling of rear seat backrest | MODEL 166 40% rear seat |
AR91.12-P-1131GZ |
| 8 | Remove switch for folding rear seat backrest from rear seat backrest at top | MODEL 166.8 with CODE 843 (Electric EASY-ENTRY) |
|
| 9 | Remove cover (1)) from rear seat backrest frame using assembly wedge (01) | Figure | |
| 10 | Release and disconnect electrical connector (5) at sidebag | ||
| 11 | Disconnect electrical connector from seat heater | MODEL 166 with CODE 872 (Heated rear seats) |
|
| 12 | Remove cover (1) and padding from rear seat backrest frame | ||
| 13 | Unhook staple wires of cover (1) at padding out of clips (3) |
||
| 14 | Install in the reverse order |
