Removing And Installing Paneling Of Rear Seat Backrest - AR91.12-P-1131GZ

MODEL 164, 166

40% rear seat

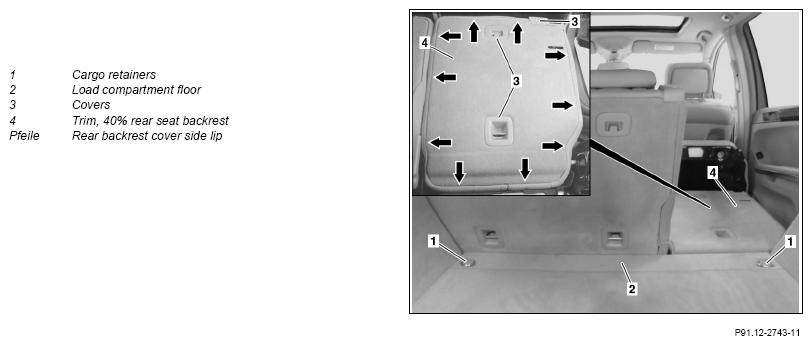

Shown on model 164.1

	Remove/install
1	Fold 40% rear seat backrest to front	Fold up rear seat cushion first.
2.1	Unclip coverings of cargo retainers (1) and unscrew concealed bolt	Cargo retainers must be removed Only model 164.1. Bolt, cargo retainers to body	*BA68.50-P-1001-03F
2.2	Unclip coverings of cargo retainers (1) and unscrew concealed bolt	Cargo retainers must be removed
3.1	Unclip load compartment floor (2) and remove	Load compartment floor must be removed Only on model 164.1. Long wedge	Fig 1
3.2	Unclip load compartment floor (2) and remove	Load compartment floor must be removed
4	Unclip coverings (3) of 40% rear seat backrest	Long wedge	Fig 1
5	Pull out rear backrest cover side lip (arrows) on back of the 40% rear seat backrest	Long wedge	Fig 1
6	Remove trim, 40% rear seat backrest (4)
7	Install in the reverse order

CARGO RETAINERS

Number	Designation		MODEL 164.1/8	MODEL 166
BA68.50-P-1001-03F	Bolt, cargo retainers to body	Nm	24	-

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
