Remove/Install Front Seat Cushion Cover - AR91.18-P-1800GQA
MODEL 166, 292
except CODE 401 (Climatised front seats)
Shown on MODEL 166 with CODE 873 (Seat heater for driver and front passenger)
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Remove | |||
| 1 | Remove seat cushion | with code U10 (Automatic seat occupancy recognition and child seat recognition) except code 401 (Climatised front seats) The seat cushion cover for the front passenger seat cushion may not be removed. |
AR91.10-P-3310GQ |
| 2 | Remove tray for fire extinguisher | Model 166, 292 with code 682 (Fire extinguisher) except code 401 (Climatised front seats) |
|

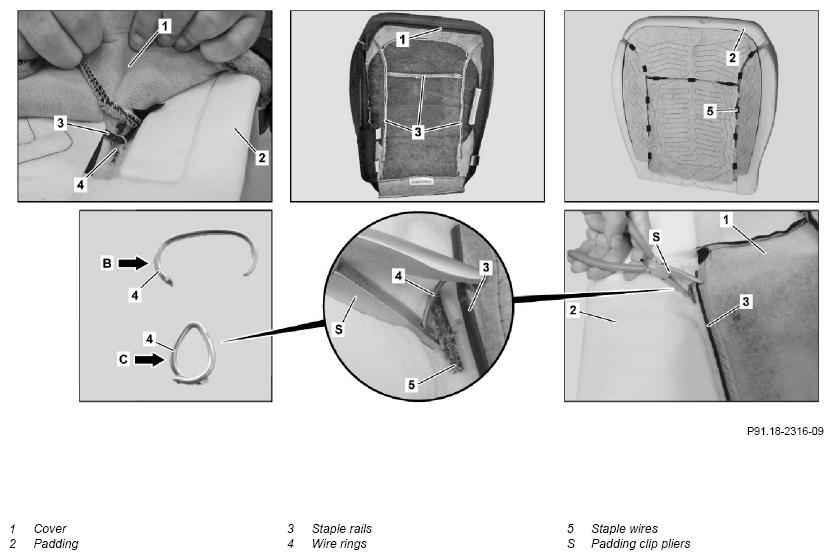

| 3 | Unhook cover (1) from seat cushion frame | Figure | |
| 4 | Slip cover (1) over padding (2) | ||
| 5 | Lift cover (1) until wire rings (4) are accessible | ||
| 6 | Remove wire rings (4) on inside at padding (2) using suitable tool | Carefully remove residues from wire rings (4). Otherwise, the padding (2) and/or the cover (1) can be damaged. |
|
| 7 | Remove cover (1) from upholstery (2) | ||
| Install | |||
| 8 | Align seams of cover (1) and position in cutouts of padding (2) | ||
| 9 | Place respective staple rail (3) of cover (1) onto corresponding staple wire (5) of padding (2) | ||
| 10 | Insert new wire ring (4) (arrow B) in the padding clip pliers (S) and hook into the eyelet of the respective staple rail (3) | Fig 1 | |
| 11 | Hook new wire ring (4) into staple wire (5) of padding (2) and compress padding clip pliers (S) until wire ring (4) is fully closed (arrow C) | Fig 1 | |
| 12 | Slip cover (1) over padding (2) | ||
| 13 | Hook cover (1) with padding (2) to seat cushion frame | ||
| 14 | Install tray for fire extinguisher | Model 166, 292 with code 682 (Fire extinguisher) except code 401 (Climatised front seats) |
|
| 15 | Install seat cushion | AR91.10-P-3310GQ |
