Remove/Install Seat Cushion - AR91.10-P-3310GQ
MODEL 166, 292

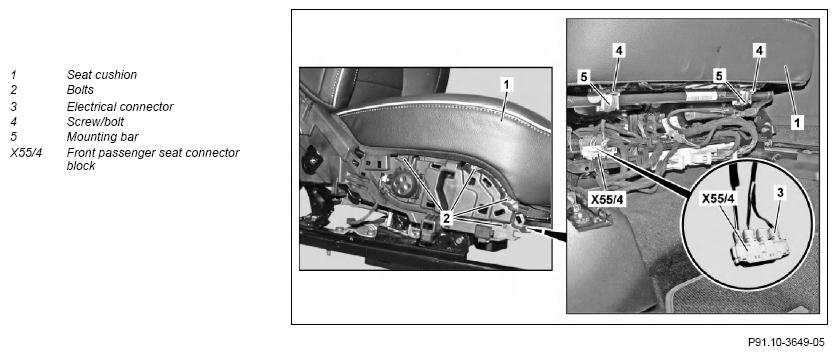

Shown on right front seat
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove belt end fitting outer trim and front outer trim | AR91.10-P-1200GQ | |
| 2 | Disconnect ground line from battery | When removing the seat cushion (1) at the passenger side. | AR54.10-P-0003GZ |
| 3 | Remove bolts (2) | ||
| 4 | Remove bolts (4) | ||
| 5 | Lift seat cushion (1) out of mounting bars (5) and move out | ||
| 6 | Unclip pneumatic lines belonging to seat cushion (1) from seat cushion (1) | Model 166, 292 with code 399 (Multicontour front seats with massage function) If necessary ↓ Replace cable tie |
Fig 3 |
| 7 | Disconnect pneumatic line belonging to seat cushion (1) at separating point | Model 166, 292 with code 399 (Multicontour front seats with massage function) Carefully disconnect pneumatically line at separating point. Danger of breakage. |
|
| 8 | Unclip electrical lines belonging to seat cushion (1) from seat frame and expose | If necessary ↓ Replace cable tie |
Fig 3 |
| 9 | Disconnect electrical connectors belonging to seat cushion (1) | ||
| 10 | Detach rear footwell lamp from seat cushion frame at front passenger seat or driver seat | Model 166, 292 with code 876 (Interior Light package) |
|
| 11 | Carefully unclip front passenger seat connector block (X55/4) from seat frame | When removing seat cushion (1) from front passenger seat. | |
| 12 | Use suitable tool to unclip and disconnect electrical connection (3) of seat occupied recognition from front passenger seat connector block (X55/4) | When removing seat cushion (1) from front passenger seat. Unclip electrical connector (3) carefully. Danger of breakage. |
|
| 13 | Disconnect electrical connection for Weight Sensing System (WSS) | Model 166, 292 with code U10 (Automatic seat occupancy recognition and child seat recognition) When removing the seat cushion (1) at the passenger side. |
|
| 14 | Remove seat cushion (1) from seat frame | ||
| 15 | Install in the reverse order | ||
| Initial startup | |||
| 16.1 | Commission Weight Sensing System (WSS) | Model 166.0/8 up to model year 2016 with code 494 (US version) with code U10 (Automatic seat occupancy recognition and child seat recognition) When removing the seat cushion (1) at the passenger side. |
|
| AD00.00-P-2000-04A | |||
| Fig 2 | |||
| 16.2 | Commission Weight Sensing System (WSS) | Model 166.0/8 as of model year 2016 with code U10 (Automatic seat occupancy recognition and child seat recognition) Model 292 with code U10 (Automatic seat occupancy recognition and child seat recognition) When removing the seat cushion (1) at the passenger side. |
|
| AD00.00-P-2000-04A | |||
| Fig 1 |
