Overview Of Pre-Safe System Components - GF91.40-P-9997GN
MODEL 166 as of model year 2016
MODEL 292

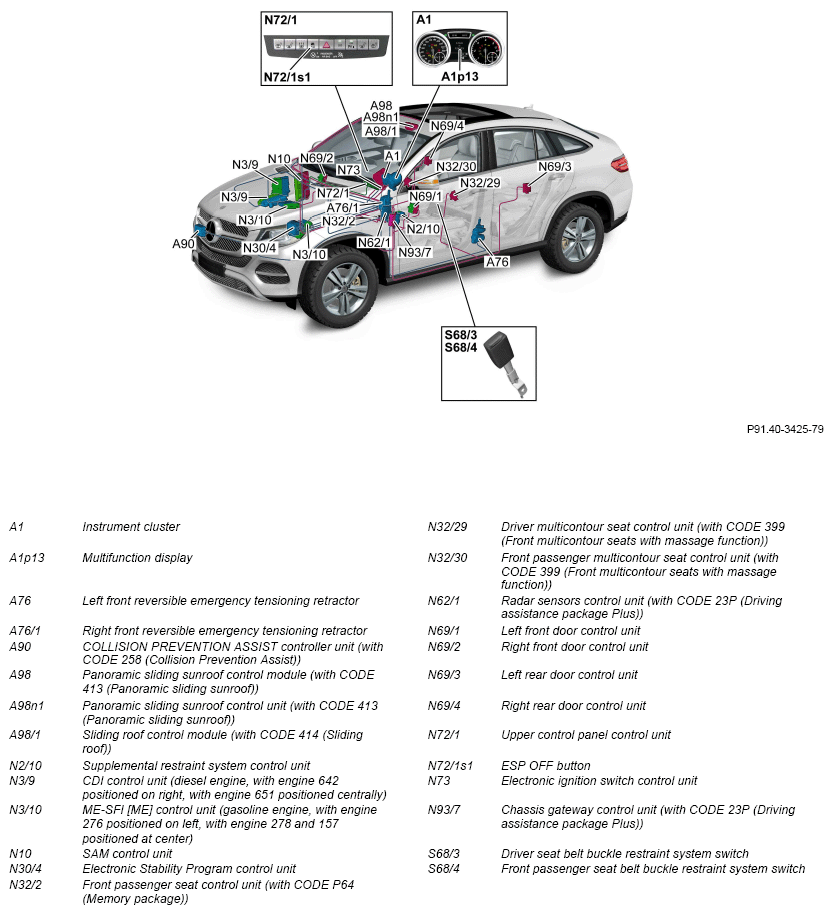

Shown: Model 292
MODEL 166.063
as of model year 2016
The powertrain control unit (N127) is also installed, but it is not shown here.
| Component description for instrument cluster | A1 | GF54.30-P-6000GN | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020GN | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 166 as of model year 2016 with CODE 258 (COLLISION PREVENTION ASSIST) MODEL 292 with CODE 258 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214GN | |
| Component description for panoramic sliding roof control module | MODEL 166 as of model year 2016 with CODE 413 (Automatic panoramic sliding sunroof) MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof) A98, A98n1 |
GF77.20-P-4106GN | |
| Component description for sliding roof control module | MODEL 166 as of model year 2016 with CODE 414 (Sliding sunroof) A98/1 |
GF77.20-P-4108GN | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GN | |
| Component description for CDI control unit | MODEL 166 with ENGINE 651.9 as of 6/1/15 as of model year 2016 N3/9 |
GF07.16-P-6000OLF | |
| MODEL 166 with ENGINE 642.8 as of model year 2016 MODEL 292 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OGF | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 157.9, 278.9 as of model year 2016 MODEL 292 with ENGINE 157.9, 278.9 N3/10 |
GF07.61-P-6000MMY | |
| MODEL 166.063 with ENGINE 276.8 as of model year 2016 N3/10 |
GF07.61-P-6000MMM | ||
| MODEL 166 (except 166.063) with ENGINE 276.8 as of model year 2016 MODEL 292 with ENGINE 276.8 N3/10 |
GF07.61-P-6000MMX | ||
| MODEL 166 with ENGINE 276.9 as of model year 2016 N3/10 |
GF07.61-P-6000MNG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GN | |
| Component description for Electronic Stability Program control unit | MODEL 166 (except 166.063) as of model year 2016 MODEL 292 N30/4 |
GF42.45-P-5119GN | |
| MODEL 166.063 as of model year 2016 N30/4 |
GF42.45-P-5119GRH | ||
| Component description for front passenger seat control unit | MODEL 166 as of model year 2016 with CODE P64 (Memory package) MODEL 292 with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GN | |
| Multicontour seat control unit (MCS), component description | MODEL 166 as of model year 2016 with CODE 399 (Multicontour front seats with massage function) MODEL 292 with CODE 399 (Multicontour front seats with massage function) N32/29, N32/30 |
GF91.25-P-5201GN | |
| Component description for radar sensors control unit | MODEL 166 as of model year 2016 with CODE 23P (Driving Assistance package Plus) MODEL 292 with CODE 23P (Driving Assistance package Plus) N62/1 |
GF30.30-P-3301GN | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GN | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GN | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GN | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GN | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GN | |
| Component description for chassis gateway control unit | MODEL 166 as of model year 2016 with CODE 23P (Driving Assistance package Plus) MODEL 292 with CODE 23P (Driving Assistance package Plus) N93/7 |
GF54.21-P-1010GN | |
| Drivetrain control unit, component description | MODEL 166.063 with ENGINE 276.8 as of model year 2016 N127 |
GF54.21-P-2141GN | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997GN |
