Remove/Install Stowage Compartment - AR68.20-P-2320GQ
MODEL 166, 292
Shown on model 166 with code 386 (Comfort telephony)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||

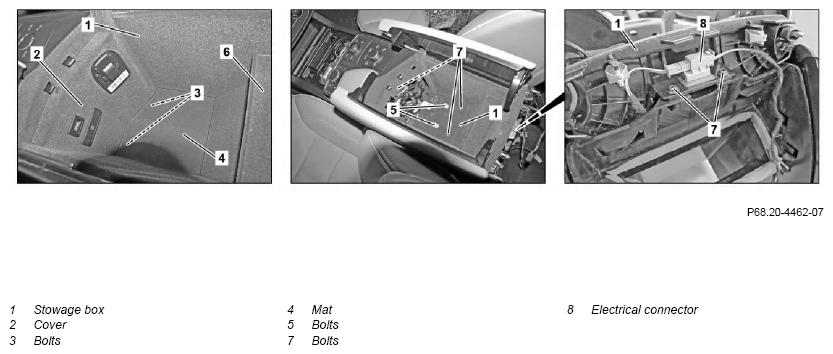

| 1 | Remove rear center console | AR68.20-P-2020GQ | |
| 2 | Unlock armrests in stowage box (1) and position upright | ||
| 3 | Remove mat (4) from stowage box (1) | ||
| 4 | Remove bolts (3) | ||
| 5 | Lift cover (2) and disconnect electrical lines from cover (2) | ||
| 6 | Remove cover (2) | ||
| 7 | Remove screws (5) | ||
| 8 | Disconnect electrical connector (8) from stowage box (1) and unclip | ||
| 9 | Remove bolts (7) | ||
| 10 | Remove stowage box (1) upward with armrests | ||
| 11 | Install in the reverse order |
