Retrofit Drive Kit Plus For Smartphones - AZ82.60-P-0027GQ

MODEL 166.0 (except 166.074/075) up to 6/21/15, 166.8 (except 166.874) up to 12/13/15

up to model year 2016

with CODE 510 (Audio 20 CD with 6-disc CD changer)

except CODE 508 (Navigation box preinstallation)

except CODE 509 (Navigation box)

except CODE 840 (Glass dark tinted)

MODEL 166.0 (except 166.074/075) up to 6/21/15, 166.8 (except 166.874) up to 12/13/15

up to model year 2016

with CODE 512 (COMAND APS with DVD changer)

except CODE 865 (TV tuner)

except CODE 867 (SPLITVIEW)

MODEL 166.0 (except 166.074/075) up to 6/21/15, 166.8 (except 166.874) up to 12/13/15

up to model year 2016

with CODE 523 (Audio 20 CD)

except CODE 508 (Navigation box preinstallation)

except CODE 509 (Navigation box)

except CODE 840 (Glass dark tinted)

MODEL 166.0 (except 166.074/075) up to 6/21/15, 166.8 (except 166.874) up to 12/13/15

up to model year 2016

with CODE 527 (COMAND APS with single DVD drive (with navigation))

except CODE 865 (TV tuner)

except CODE 867 (SPLITVIEW)

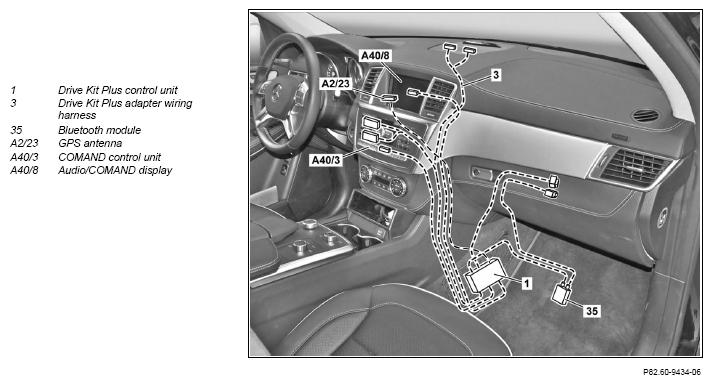

Routing diagram for Drive Kit Plus for smartphone, shown on left-hand drive vehicle

	Notes on avoiding damage to optical fibers during repair work		AH82.60-P-0001-05AK
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Move front passenger seat toward rear
2	Remove front floor covering on passenger side		AR68.20-P-2070GQ
3	Remove cover below instrument panel on passenger side		AR68.10-P-1520GQ
4	Remove center console	With CODE 518 (Media Interface)	AR68.20-P-2000GQ
5	Remove glove compartment		AR68.10-P-1400GQ
6	Remove audio component		AR82.60-P-7502GQ
7	Remove Audio/COMAND display		AR82.60-P-7722GQ
	Install
8	Prepare vehicle for retrofitting Drive Kit Plus for smartphones		AZ82.60-P-0027-08GQ
9	Retrofit Drive Kit Plus adapter wiring harness (3)	Long wedge	AZ82.60-P-0027-01GQ  Figure
10	Retrofit low voltage differential signal (LVDS) wiring harness		AZ82.60-P-0027-04GQ
11	Retrofit GPS antenna (A2/23)	With CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)	AZ82.60-P-0027-06GQ
12	Retrofit Drive Kit Plus Media Interface adapter line	With CODE 518 (Media Interface)	AZ82.60-P-0027-05GQ
13	Retrofit Drive Kit Plus connecting wiring harness		AZ82.60-P-0027-02GQ
14	Retrofit Drive Kit Plus control unit (1)		AZ82.60-P-0027-03GQ
15	Retrofit Bluetooth module (35)		AZ82.60-P-0027-07GQ
16	Install AV adapter	For other manufacturers of the AV adapter see ODUS: Services and Downloads > Additional Information > Accessories > Telematics > Drive Kit Plus
17	Install remaining parts
18	Perform software update for radio (A2)	MODEL 166 up to 31.05.2012 up to model year 2013 with CODE 510 (Audio 20 with CD changer) or CODE 523 (MB Audio 20 radio)
19	Connect Star Diagnosis and select vehicle via the vehicle identification number (VIN)	MODEL 166 as of 01.12.2013 as of model year 2014	AD00.00-P-2000-04A
20	Perform variant coding with XENTRY using the software calibration number (SCN)	MODEL 166 as of 01.12.2013 as of model year 2014 Register Drive Kit Plus for the smartphone at the audio component using SCN coding.
21	Disconnect Star Diagnosis	MODEL 166 as of 01.12.2013 as of model year 2014	AD00.00-P-2000-04A
	Update Vehicle Documentation (VeDoc)
22	Attach a note "Drive Kit Plus for smartphone retrofitted as per AZ82.60-P-0027GQ" under field organization texts for DG 68 and DG 82
23	Enter special equipment via VeDoc in online vehicle data card: - Code "89o"	Ensure here that the third digit is the letter "o" for Oscar.
	Check
24	Perform function check on Drive Kit Plus for smartphone	See Owner's Manual.

Part no.	Designation	Quantity
KG 98	Installation kit of Drive Kit Plus for smartphones	1
