Retrofit Drive Kit Plus For Apple Iphone - AZ82.60-P-0019GQ
MODEL 166.0 (except 166.074), 166.8 (except 166.874)
with CODE 510 (Audio 20 CD with 6-disc CD changer)
except CODE 508 (Navigation box preinstallation)
except CODE 509 (Navigation box)
except CODE 840 (Glass dark tinted)
except CODE 865 (TV tuner)
except CODE 867 (SPLITVIEW)
MODEL 166.0 (except 166.074), 166.8 (except 166.874)
with CODE 512 (COMAND APS with DVD changer)
except CODE 865 (TV tuner)
except CODE 867 (SPLITVIEW)
MODEL 166.0 (except 166.074), 166.8 (except 166.874)
with CODE 523 (Audio 20 CD)
except CODE 508 (Navigation box preinstallation)
except CODE 509 (Navigation box)
except CODE 840 (Glass dark tinted)
except CODE 865 (TV tuner)
except CODE 867 (SPLITVIEW)
MODEL 166.0 (except 166.074), 166.8 (except 166.874)
with CODE 527 (COMAND APS with single DVD drive (with navigation))
except CODE 865 (TV tuner)
except CODE 867 (SPLITVIEW)

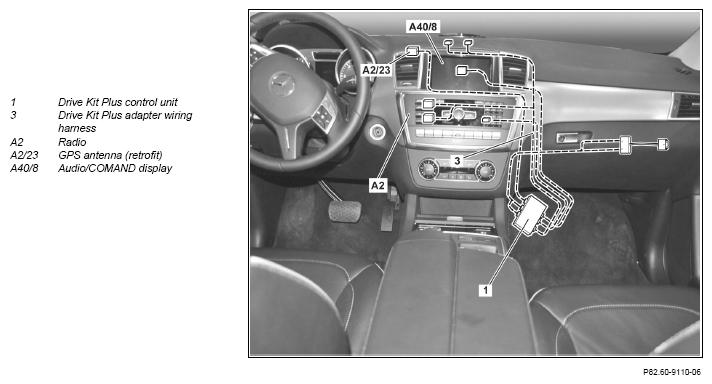

Routing diagram for Drive Kit Plus for the Apple iPhone 4, shown on left-hand drive vehicle with code 510 (Audio 20 CD with 6- disk CD changer)

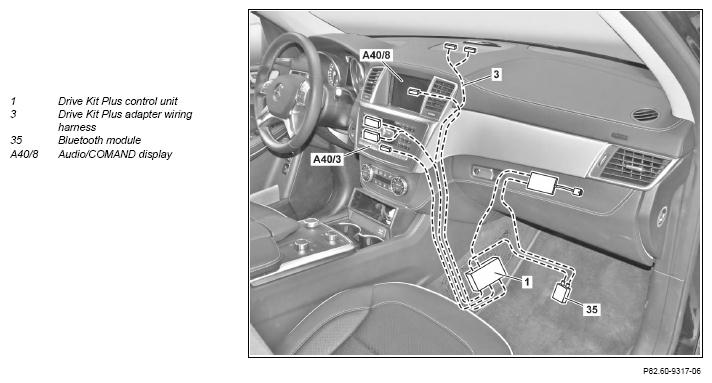

Routing diagram for Drive Kit Plus for the Apple iPhone 5, shown on left-hand drive vehicle with code 512 (COMAND APS with DVD changer)
| Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove | |||
| 1 | Move front passenger seat toward rear | ||
| 2 |
Remove front floor covering on passenger side | AR68.20-P-2070GQ | |
| 3 |
Remove cover below instrument panel on passenger side | AR68.10-P-1520GQ | |
| 4 |
Remove center console | On vehicles with CODE 518 (Media Interface) | AR68.20-P-2000GQ |
| 5 |
Remove glove compartment | AR68.10-P-1400GQ | |
| 6 |
Remove audio component | AR82.60-P-7502GQ | |
| 7 |
Remove Audio/COMAND display (A408) | with code 510 (Audio 20 CD with 6-disk CD changer) or with code 512 (COMAND APS with DVD changer) or with code 523 (Audio 20 CD) or with code 527 (COMAND APS with single DVD drive (with navigation) | AR82.60-P-7722GQ |
| Install | |||
| 8 | Prepare vehicle for retrofit of Drive Kit Plus for the Apple iPhone | AZ82.60-P-0019-08GQ | |
| 9 | Retrofit Drive Kit Plus adapter wiring harness (3) | AZ82.60-P-0019-01GQ Figure |
|
| 10 | Retrofit low voltage differential signal (LVDS) wiring harness | AZ82.60-P-0019-04GQ | |
| 11 | Retrofit GPS antenna (retrofit) (A2/23) | With code 510 (Audio 20 CD with 6-disk CD changer) or code 523 (Audio 20 CD) | AZ82.61-P-0003-02GQ |
| 12 | Retrofit Drive Kit Plus Media Interface adapter line | With CODE 518 (Media Interface) | AZ82.60-P-0019-05GQ |
| 13 | Retrofit Drive Kit Plus connecting wiring harness | AZ82.60-P-0019-02GQ | |
| 14 | Retrofit Drive Kit Plus control unit (1) | AZ82.60-P-0019-03GQ | |
| 15 | Retrofit Bluetooth module (35) | With retrofit of Drive Kit Plus for the Apple iPhone 5. | AZ82.60-P-0019-07GQ |
| 16 | Install remaining parts | ||
| Update Vehicle Documentation (VeDoc) | |||
| 17 | Attach note "Drive Kit Plus for the Apple iPhone retrofitted as per AZ82.60-P-0019GQ" under field organization texts to design group 68 and design group 82 | ||
| 18 | Enter special equipment in vehicle online data card - CODE "89o" | ||
| 19 | Perform software update for radio (A2) | MODEL 166 up to 31.05.2012 up to model year 2013 with code 510 (Audio 20 CD with 6- disk CD changer) or code 523 (Audio 20 CD) | |
| 20 |
Connect diagnostic system and select vehicle via the vehicle identification number (VIN) | MODEL 166 as of 01.12.2013 as of model year 2014 | AD00.00-P-2000-04A |
| 21 | Perform adaptation and redocumentation of Drive Kit Plus control unit | Only with "Car-to-X". |
|
| 22 |
Perform variant coding with XENTRY using the software calibration number (SCN) | MODEL 166 as of 01.12.2013 as of model year 2014 |
AR54.21-P-0015X |
| 23 |
Disconnect diagnostic system | AD00.00-P-2000-04A | |
| 24 | Install software onto USB stick and flash through update adapter for Apple iPhone onto Drive Kit Plus control unit | ||
| Check | |||
| 25 | Perform function check of Drive Kit Plus for the Apple iPhone |
| Part no. | Designation | Quantity |
|---|---|---|
| KG 98 | Drive Kit Plus installation kit for the Apple iPhone | 1 |
