Retrofit CA Module Card Reader - AZ82.60-P-0032GQ

MODEL 166, 292 with CODE 197 (DVB-T2 conversion with ext. card reader/HD-TV Korea) with CODE 865 (TV tuner) except CODE 835 (Vehicles for South Korea, additional parts)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove stowage box
			AR68.20-P-2320GQ
2	Expose tuner unit until the electric lines are accessible.
			AR82.85-P-7366GQ
	Install
3	Install electrical wiring harness for CA module card reader (1)		AZ82.60-P-0032-01GQ
4	Retrofit bracket for CA module card reader (1)		AZ82.60-P-0032-02GQ

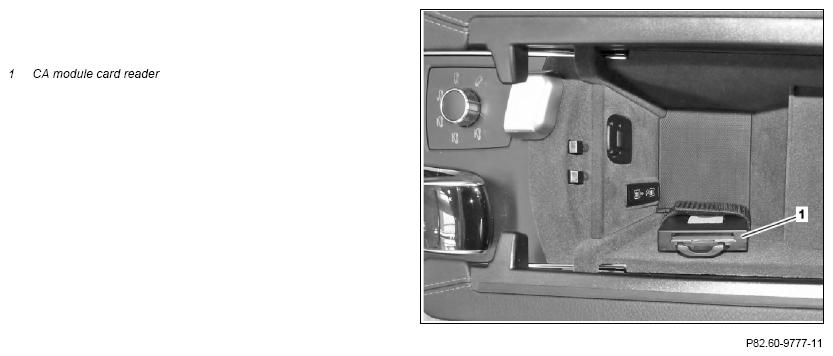

5	Retrofit CA module card reader (1) for tuner unit		AZ82.60-P-0032-00GQ
6	Install stowage box
			AR68.20-P-2320GQ
	Update Vehicle Documentation (VeDoc)
7	Enter special equipment in online vehicle data card	Code 381 (CI+BOX card reader for DVB-T2 standard)
8	Attach note "CA module card reader retrofitted as per AZ82.60-P-0032GQ" under field organization texts to design group 82
9	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
10	Carry out variant coding using software calibration number (SCN)	TV tuner  The CA module card reader (1) can only be operated in the temperature range of 0 to 50 °C. Outside of this temperature range, the CA module card reader (1) switches off automatically.
11	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
12	Perform function test
