Removing And Installing Keyless Go Antenna - AR82.62-P-8000GQ
MODEL 166, 292
with CODE 889 (KEYLESS-GO)
Shown on model 166.0
Shown on model 166.8
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2.1 | Remove center console | Model 166.0, 292 with code 889 (KEYLESS-GO) When removing vehicle interior KEYLESS-GO antenna (A2/61). |
|
| AR68.20-P-2000GQ | |||
with code 301 (Package SMOKER) with code 889 (KEYLESS-GO) The vehicle interior KEYLESS-GO antenna (A2/61) is located below the ashtray. |
|||
| 2.2 | Remove center console | Model 166.8 with code 889 (KEYLESS-GO) When removing KEYLESS-GO center console (A2/60). |
|
| AR68.20-P-2000GQ | |||
with code 301 (Package SMOKER) with code 889 (KEYLESS-GO) The center console KEYLESS-GO antenna (A2/60) is located below the ashtray. |
|||
| 2.3 | Remove rear door lining | When removing left rear door KEYLESS-GO antenna (A2/39) or right rear door KEYLESS-GO antenna (A2/41). | |
| Model 166 with code 889 (KEYLESS-GO) except code Z04 (Light armoring) except code Z05 (B5 armoring on special protection version) Model 292 with code 889 (KEYLESS-GO) |
AR72.12-P-1010GQ | ||

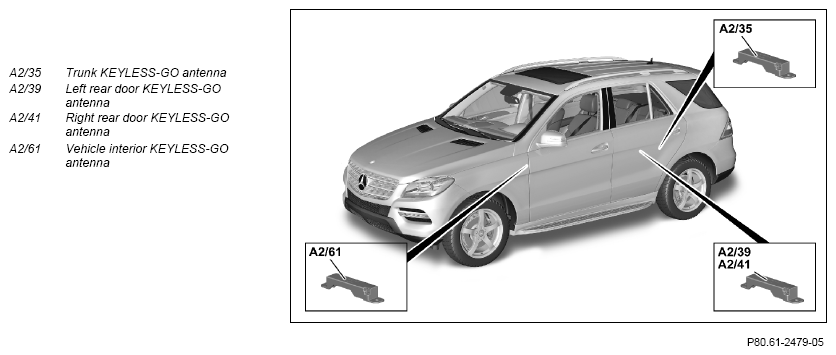

| 2.4 | Remove load compartment floor | Model 166.0, 292 with code 889 (KEYLESS-GO) When removing trunk KEYLESS-GO antenna (A2/35). |
|
| 2.5 | Detach trunk floor at front until trunk KEYLESS-GO antenna (A2/35) is visible | Model 166.0, 292 with code 889 (KEYLESS-GO) When removing trunk KEYLESS-GO antenna (A2/35). |
|
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating range of the mechanism when moving components. | AS00.00-Z-0009-01A | |
| 2.6 | Fold both rear seats of 2nd seat row forward | Model 166.8 with code 889 (KEYLESS-GO) When removing vehicle interior KEYLESS-GO antenna (A2/61). |
|

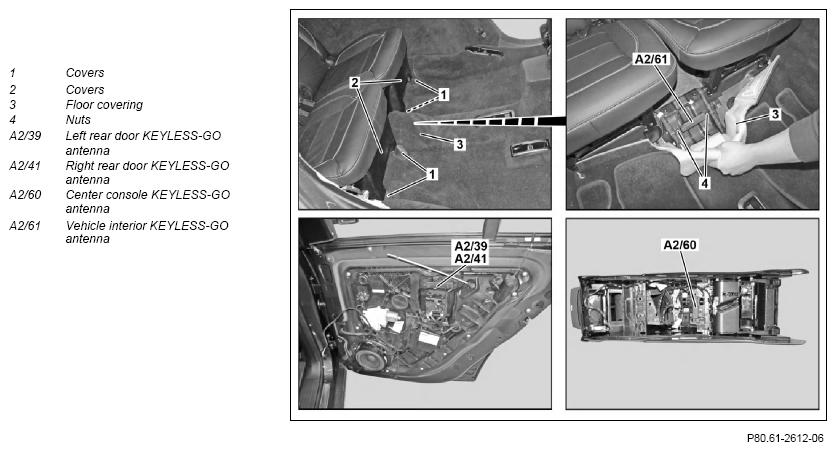

| 2.7 | Remove covers (1, 2) and lift floor covering | Model 166.8 with code 889 (KEYLESS-GO) When removing vehicle interior KEYLESS-GO antenna (A2/61). |
|
| 3 | Disconnect corresponding electrical connector | ||
| 4 | Unscrew nuts (4) | Model 166.8 with code 889 (KEYLESS-GO) When removing vehicle interior KEYLESS-GO antenna (A2/61). |
|
| 5 | Unclip corresponding KEYLESS-GO antenna (A2/35, A2/39, A2/41, A2/60 or A2/61) | ||
| 6 | Install in the reverse order |
