Remove/Install Windshield Washer Hose - AR82.35-P-6980GQC
MODEL 166, 292
with CODE 874 (MAGIC VISION CONTROL, heated)
| Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism. | When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m). | AS82.30-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | Model 166, 292 with code 874 (MAGIC VISION CONTROL, heated) |
|
| Model 166 with code 874 (MAGIC VISION CONTROL, heated) |
AR88.40-P-1000GQ | ||

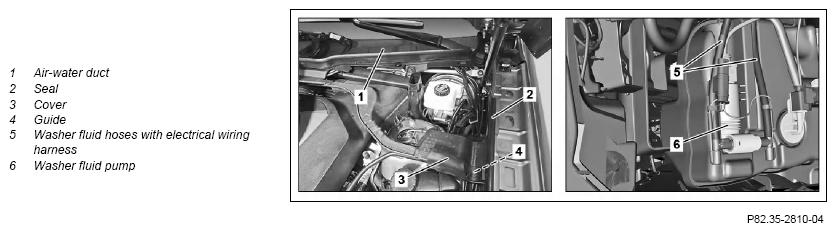

| 2 | Remove air/water duct (1) | AR83.25-P-1402GQ | |
| 3 | Detach front section of fender liner in left front fender | AR88.10-P-1310GQ | |
| 4 | Disconnect electrical connector and carefully disconnect washer fluid hoses with electrical wiring harness (5) from washer fluid pump (6) | ||
| 5 | Collect escaping washer fluid using suitable container | ||
| 6 | Remove seal (2) | ||
| 7 | Unclip cover (3) on one side and remove | ||
| 8 | Detach washer fluid hoses with electrical wiring harness (5) from guide (4) | ||
| 9 | Detach and remove washer fluid hoses with electrical wiring harness (5) from brackets | ||
| 10 | Install in the reverse order |
