Opening Engine Hood, Moving To Upright Position And Closing - AR88.40-P-1000GQ
MODEL 166
| Open | |||
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |

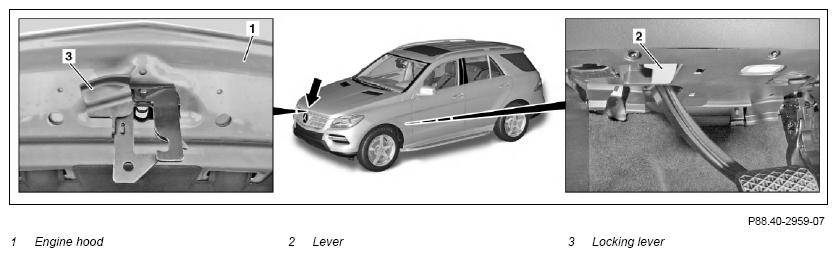

| 1 | Pull lever (2) to unlock engine hood (1) | ||
| 2 | Press locking lever (3) upward and open engine hood (1) | ||
| Move to upright position | |||
| 3 | Push engine hood (1) in center (arrow) beyond dead center position of engine hood hinges upward to position upright | ||
| Close | |||
| 4 | Press down engine hood (1) in center (arrow) and lock | ||
| Check | |||
| 5 | Ensure that engine hood locks (1) properly |
