Remove/Install Radio Display - AR82.60-P-7722GQ
MODEL 166 up to model year 2016
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 |
Connect diagnostic system and perform initial startup of Audio/COMAND display (A40/8) | When replacing Audio/COMAND display (A408). | AD00.00-P-2000-04A |
| 2 | Remove center air vents | AR68.10-P-1150GQ | |

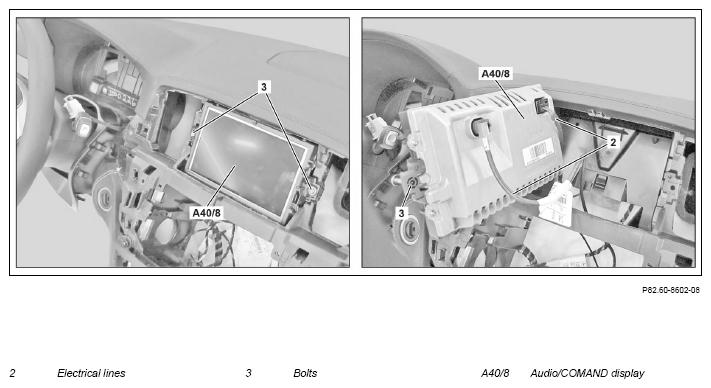

| 3 | Remove bolts (3) | ||
| 4 | Remove Audio/COMAND display (A40/8) from instrument panel upper section until electrical lines (2) are accessible | ||
| 5 | Disconnect electrical lines (2) | ||
| 6 | Remove Audio/COMAND display (A408) | ||
| 7 | Install in the reverse order |
