Remove/Install Loudspeakers In Rear Doors - AR82.62-P-7874GZ
MODEL 164, 166, 292

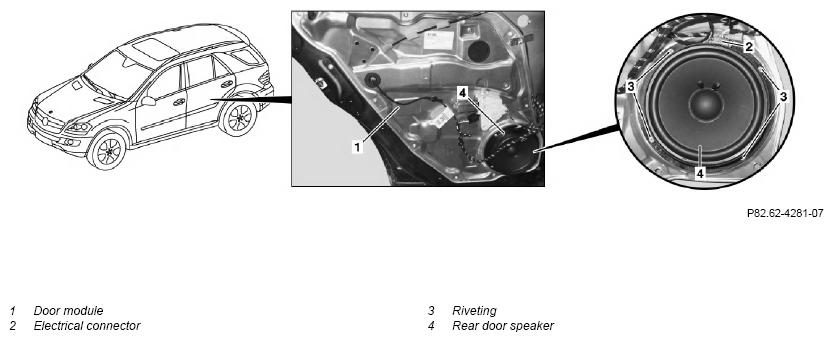

Shown on model 164.1
| Remove/install | |||
| 1 | Switch off radio | ||
| 2 | Remove door lining from left or right rear door | MODEL 164 | AR72.12-P-1010GZ |
| MODEL 166 without CODE Z04 (Light armoring) without CODE Z05 (B5 armoring on special protection version) MODEL 292 |
AR72.12-P-1010GQ | ||
| 3 | Disconnect electrical connector (2) from rear door speaker (4) | ||
| 4.1 | Drill out rivets (3) with a drill bit with Ø 4.8 mm | MODEL 164 Rests of rivet must be completely removed. Otherwise corrosion damage may occur. |
|
| 4.2 | Unscrew bolts | MODEL 166, 292 | |
| 5 | Remove rear door speaker (4) from door module (1) | ||
| 6 | Install in the reverse order |
