Remove/Install Loudspeakers In Front Doors - AR82.62-P-7845GZ
MODEL 164, 166, 292

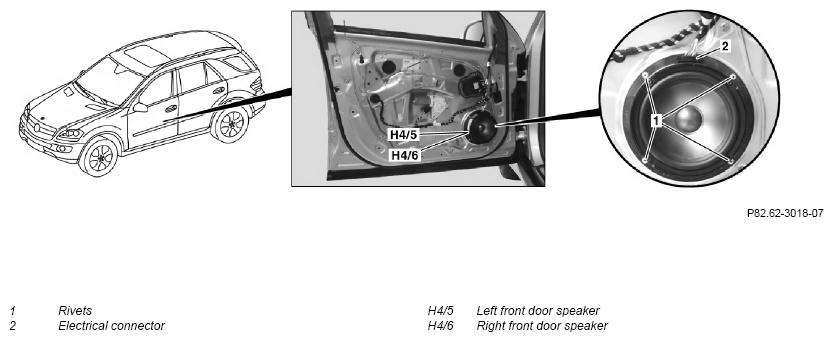

Shown on model 164.1
| Remove/install | |||
| 1 | Remove door lining from left or right front door | MODEL 164 | AR72.10-P-1000GZ |
| MODEL 166 without CODE Z04 (Light armoring) without CODE Z05 (B5 armoring on special protection version) MODEL 292 |
AR72.10-P-1000GQ | ||
| 2 | Disconnect electrical connector (2) from left front door speaker (H4/5) or right front door speaker (H4/6) | ||
| 3.1 | Drill out rivet (1) using a drill bit Ø 4.8 mm | MODEL 164 Rests of rivet must be completely removed. Otherwise corrosion damage may occur. |
|
| 3.2 | Unscrew bolts | MODEL 166, 292 | |
| 4 | Remove left front door speaker (H4/5) or right front door speaker (H4/6) from door module | ||
| 5 | Install in the reverse order |
