Remove/Install Headlamp Unit - AR82.10-P-4730GQC
MODEL 166 as of model year 2016
MODEL 292

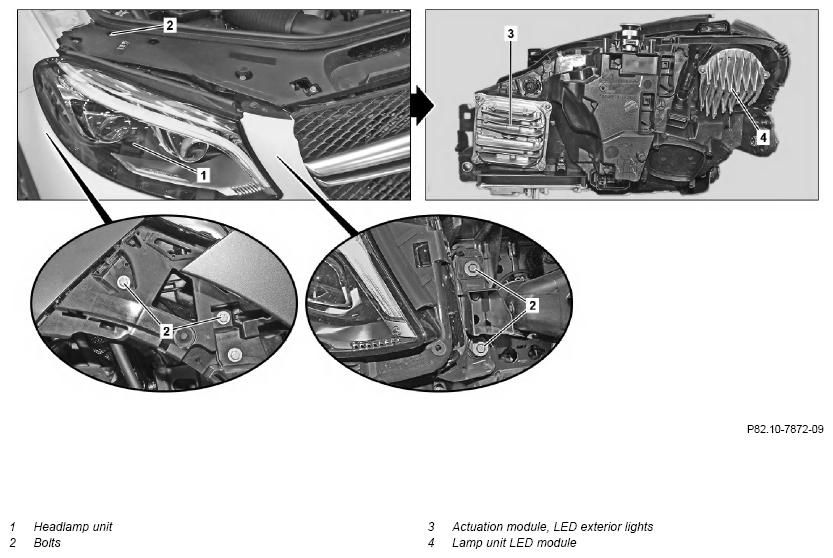

Shown on model 292 with code 642 (Dynamic right-hand traffic LED headlamp)
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data of lamp unit (1) | Only when replacing the lamp unit (1). | AD00.00-P-2000-04A |
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove front bumper | Model 166 as of model year 2016 |
AR88.20-P-2000GQ |
| Model 292 | AR88.20-P-2000GQC | ||
| 4 | Remove bolts (2) | ||
| 5 | Take out lamp unit (1) until electrical connector at lamp unit (1) is accessible | ||
| 6 | Disconnect electrical connector from lamp unit (1) | ||
| 7 | Lead washer fluid hose and cable duct out of bracket at bottom of lamp unit (1) | When removing the left lamp unit (1). |
|
| 8 | Remove lamp unit (1) | ||
| 9 | Remove lamp unit LED module (4) | When replacing the lamp unit (1). | |
| Model 166 as of model year 2016 with code 640 (High-performance LED) Model 166 as of model year 2016 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 166 as of model year 2016 with code 642 (Headlamps, LED, dynamic, right-side traffic) Model 292 with code 640 (High-performance LED) Model 292 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 292 with code 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4656GQC | ||
| 10 | Remove headlamp control unit | When replacing the lamp unit (1). | |
| AR82.10-P-4660GQC | |||
| 11 | Note series of digits of LAM number of headlamp control unit | When replacing the lamp unit (1). | |
| 12 | Remove LED actuation module, exterior lights (3) | When replacing the lamp unit (1). | |
| Model 166 as of model year 2016 with code 640 (High-performance LED) Model 166 as of model year 2016 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 166 as of model year 2016 with code 642 (Headlamps, LED, dynamic, right-side traffic) Model 292 with code 640 (High-performance LED) Model 292 with code 641 (Headlamps, LED, dynamic, left-side traffic) Model 292 with code 642 (Headlamps, LED, dynamic, right-side traffic) |
AR82.10-P-4650GQC | ||
| 13 | Install in the reverse order | ||
| Initial startup | |||
| 14 | Carry out SCN coding of lamp unit (1) | Only after replacing the lamp unit (1). | |
| AR54.21-P-0015X | |||
| 15 | Transfer previously stored basic data to lamp unit (1) | Only after replacing the lamp unit (1). | |
| AD00.00-P-2000-04A | |||
| 16 | Carry out initial startup of lamp unit (1) | Only after replacing the lamp unit (1). | |
| Check | |||
| 17 | Check headlamp adjustment and correct if necessary | ||
| Model 166 as of model year 2016 |
AP82.10-P-8260GZA | ||
| Model 292 | AP82.10-P-8260I |
