Remove/Install Bass Module Speaker - AR82.62-P-7839GQ

MODEL 166, 292

with CODE 810 (Sound system)

MODEL 166, 292

with CODE 811 (Advanced sound system)

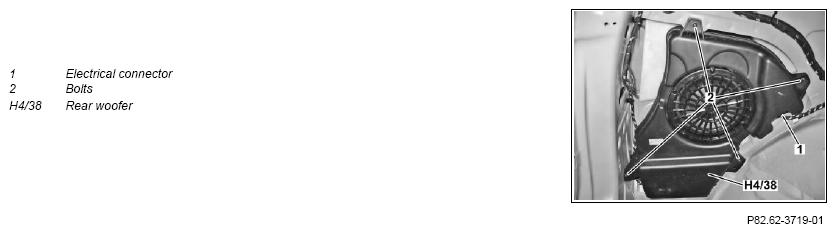

Shown on MODEL 166.0 on left side of vehicle

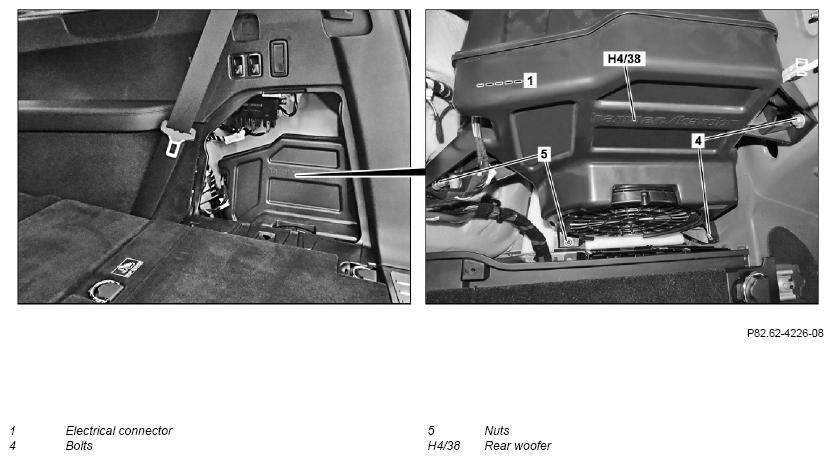

Shown on MODEL 166.8 on right side of vehicle

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1.1	Remove side paneling in right side of trunk	Model 166.8 with code 810 (Sound system) Model 166.8 with code 811 (Advanced sound system)
			AR68.30-P-4800GQX
1.2	Remove side paneling in left side of luggage compartment	Model 166.0, 292 with code 810 (Sound system) Model 166.0, 292 with code 811 (Advanced sound system)
		Model 166.0 with code 810 (Sound system) Model 166.0 with code 811 (Advanced sound system)	AR68.30-P-4800GQ
		Model 292 with code 810 (Sound system) Model 292 with code 811 (Advanced sound system)	AR68.30-P-4800GQC
2	Disconnect electrical connector (1)
3.1	Remove bolts (2)	Model 166.0, 292 with code 810 (Sound system) Model 166.0, 292 with code 811 (Advanced sound system)
3.2	Unscrew nuts (5) and remove screws/bolts (4)	Model 166.8 with code 810 (Sound system) Model 166.8 with code 811 (Advanced sound system)
4	Remove rear woofer (H4/38)
5	Install in the reverse order
