Remove/Install Side Paneling In Trunk - AR68.30-P-4800GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear shelf | ||
| 2 | Remove load compartment floor (1) | ||
| 3 | Detach sealing frame (2) in working area | ||
| 4 | Fold down seats in rear | ||
| 5 | Fold down backrest in rear | ||
| 6 | Remove door sill (3) in rear | ||
| 7 | Detach sealing frame (4) in working area | ||

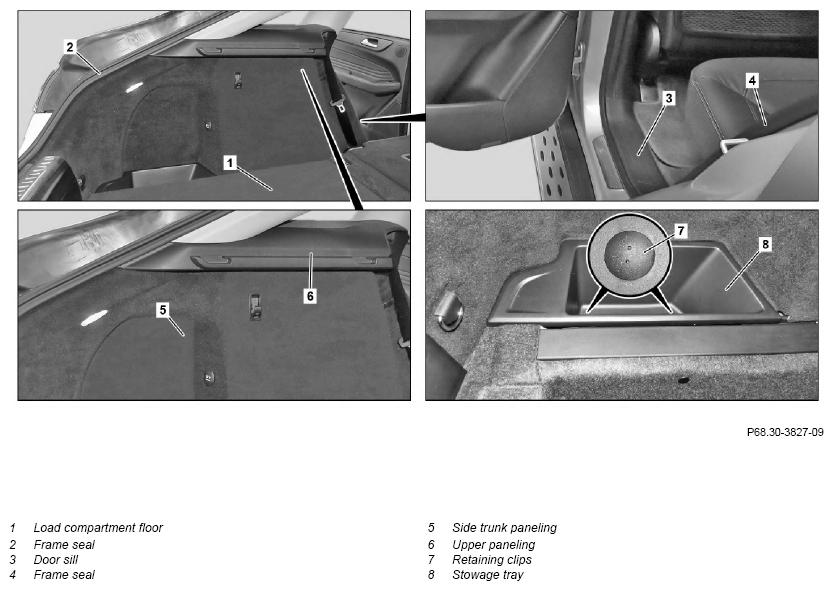

| 8 | Unclip side paneling in trunk (5) in area of C-pillar | Figure | |
| 9 | Unclip upper paneling (6) | ||
| 10 | Unclip electrical wiring harness from speaker until upper paneling (6) can be laid down to side | Model 292 with code 810 (Sound system) with code 811 (Advanced sound system) | |
| 11 | Lay upper paneling (6) down to side | ||
| 12 | Remove retaining clips (7) | Only on left side. | |
| Fig 1 | |||
| 13 | Remove stowage compartment (8) | Only on left side. | |
| 14 | Remove cover from tie-down eye (9) | ||

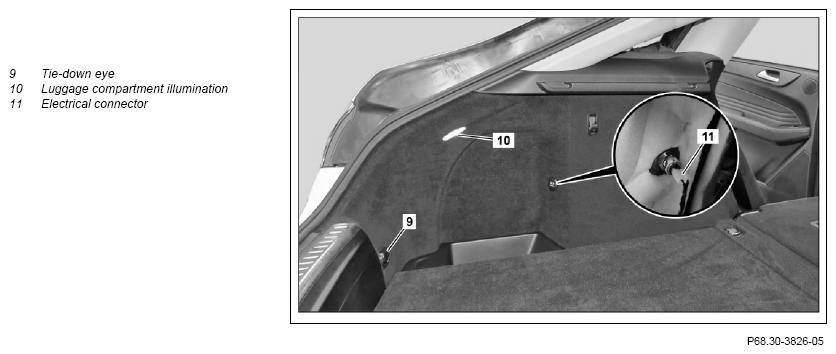

| Figure | |||
| 15 | Unscrew bolt from tie-down eye (9) | *BA68.50-P-1002-03F | |
| 16 | Unclip side paneling in trunk (5) in area of luggage compartment illumination | ||
| 17 | Pull side paneling in trunk (5) toward front until electrical connector on luggage compartment illumination (10) is accessible | ||
| 18 | Disconnect electrical connector from luggage compartment illumination (10) | ||
| 19 | Unclip side paneling in trunk (5) in rear of sealing frame (4) | ||
| 20 | Disconnect electrical connection (11) | Only on left side. | |
| 21 | Remove side paneling in trunk (5) | ||
| 22 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA68.50-P-1002-03F | Screw/bolt, tie-down eye to body/trunk floor | Nm | 24 |
