Remove/Install Backup Antenna For Tele-Aid Emergency Call System - AR82.95-P-0004GZ
MODEL 164, 166
with CODE (359) TELE AID emergency call system
with CODE (494) USA version

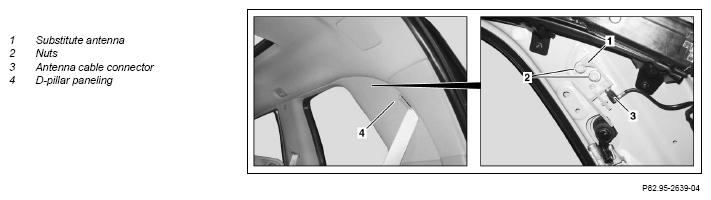

Shown on model 164.1

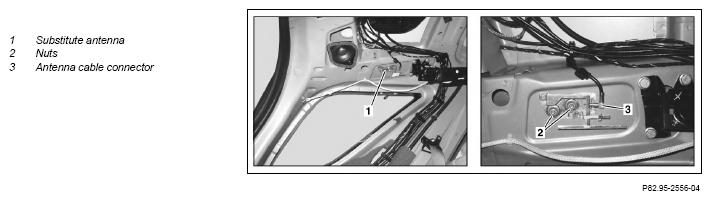

Shown on model 164.8
| Remove/install | |||
|---|---|---|---|
| 1.1 | Remove headliner | Model 164.1 | AR68.30-P-4300GZ |
| 1.2 | Remove D-pillar trim (4) | Model 164.8 | AR68.30-P-4495GZ |
| 1.3 | Remove C-pillar paneling | Model 166 | AR68.30-P-4490GQ |
| 2 | Disconnect antenna cable connector (3) | ||
| 3 | Unscrew nuts (2) and remove backup antenna (1) | ||
| 4 | Install in the reverse order |
