Remove And Install Wiper Arm - AR82.30-P-6100GQA

MODEL 166 as of 8/25/11, 292

with CODE 874 (MAGIC VISION CONTROL, heated)

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch on ignition, move left wiper arm (11) and right wiper arm (13) to park position
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
3	Open engine hood and raise to vertical position	Model 166 as of 8/25/11 with code 874 (MAGIC VISION CONTROL, heated)	AR88.40-P-1000GQ
4	Detach weatherstrip (4)
	Left wiper arm (11)

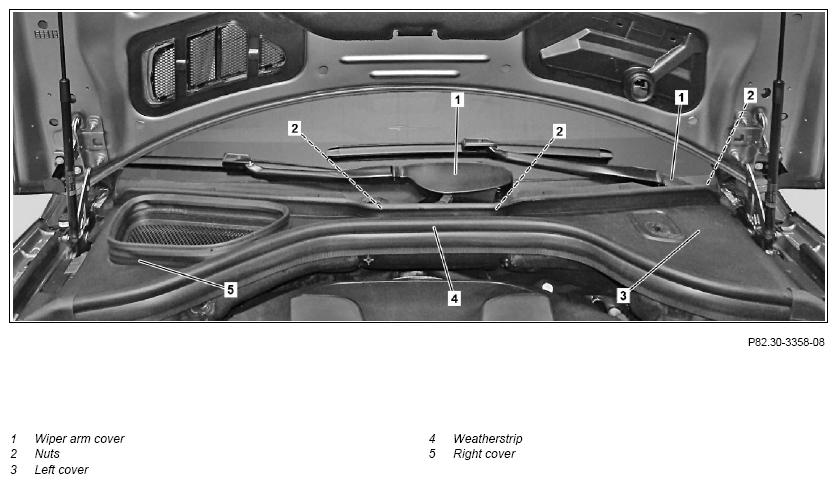

5	Remove left cover (3)
6	Remove wiper arm cover (1) from left wiper arm (11)

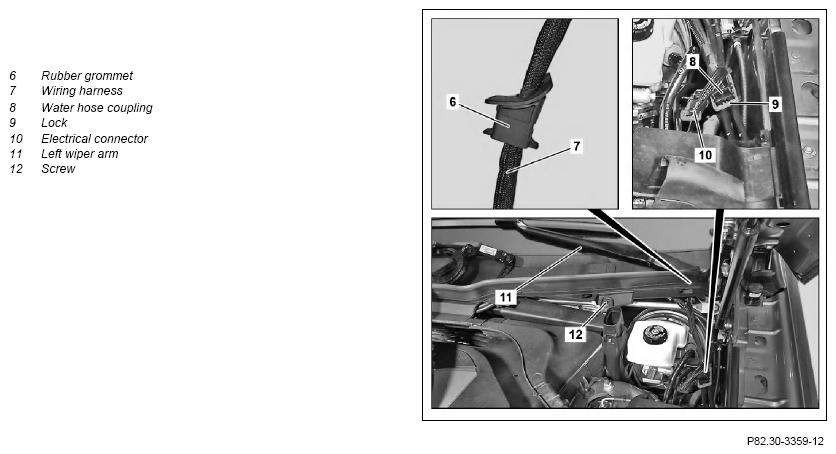

7	Disconnect electrical connector (10) from left wiper arm (11)
8	Open lock (9) and detach water hose coupling (8) from left wiper arm (11)
9	Remove screw/bolt (12)
10	Remove cover over the nut (2) on left wiper arm (11)
11	Unscrew nut (2) on left wiper arm (11)	Nut on wiper motor shaft	*BA82.30-P-1002-01J

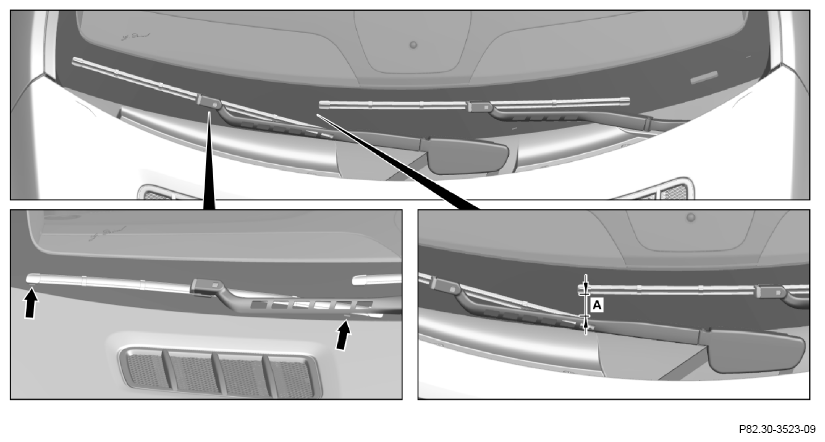

12	Remove left wiper arm (11)	Position left wiper arm (11) so that the distance dimension (A) is approx. 30 mm.
		Thrust washer M 10x1.5	Fig 1
		Puller	Fig 2
13	Unclip water deflector on left		AR88.85-P-2100RT
14	Carefully lift up air/water duct (17) until rubber grommet (6) is accessible
15	Remove wiring harness (7) with rubber grommet (6)	Make sure that the rubber grommet (6) is correctly seated and that the wiring harness (7) is correctly routed.
16	Remove left wiper arm (11)
	Right wiper arm (13)
17	Remove right cover (5)

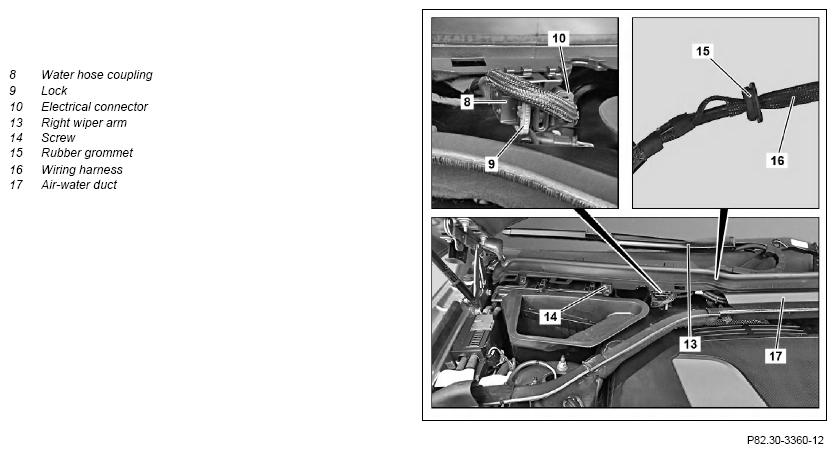

18	Remove electrical connector (10) of right wiper arm (13) from holder and disconnect
19	Open lock (9) and detach water hose coupling (8) from right wiper arm (13)
20	Remove screw/bolt (14)
21	Remove covers from the nuts (2) on right wiper arm (13)
22	Unscrew nuts (2) on right wiper arm (13)	Nut on wiper motor shaft	*BA82.30-P-1002-01J
23	Remove right wiper arm (13)	Position right wiper arm (13) with aid of window markings (arrows).
		Thrust washer M10x1.5	Fig 1
		Puller	Fig 2
24	Carefully lift up air/water duct (17) until rubber grommet (15) is accessible
25	Remove wiring harness (16) with rubber grommet (15)	Make sure that the rubber grommet (15) is correctly seated and that the wiring harness (16) is correctly routed.
26	Remove right wiper arm (13)
27	Install in the reverse order

Fig 1: Identifying Thrust Washer M10x1.5 (210 589 04 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Puller (001 589 38 33 00)

Courtesy of MERCEDES-BENZ USA
