Clean Water Drain - AP82.35-P-8232A

MODEL 166, 204, 207, 212, 213, 218, 222, 231, 238, 253, 292

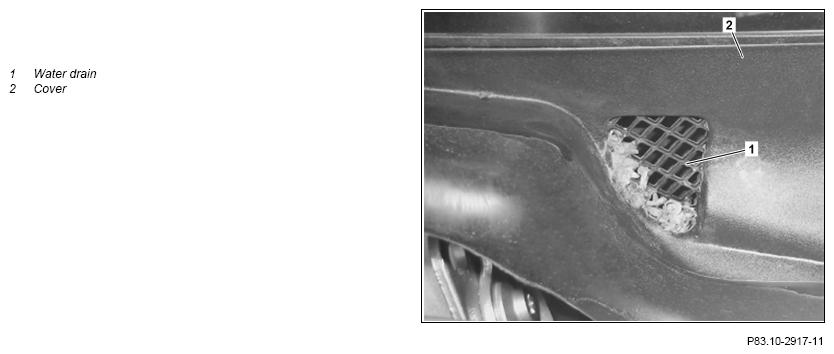

Water drain, shown on model 204.0

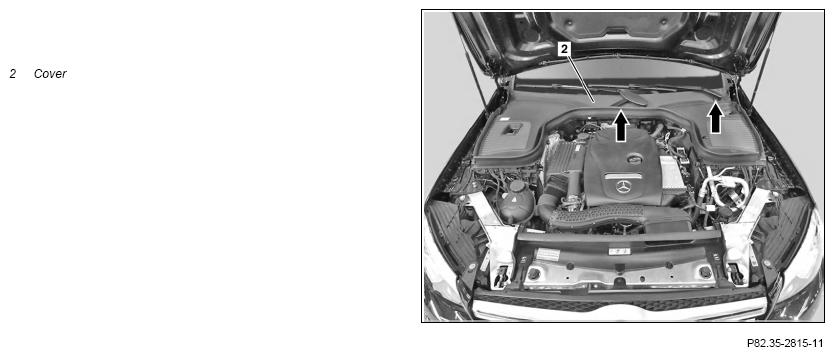

Shown on model 253, valid for model 238, 253

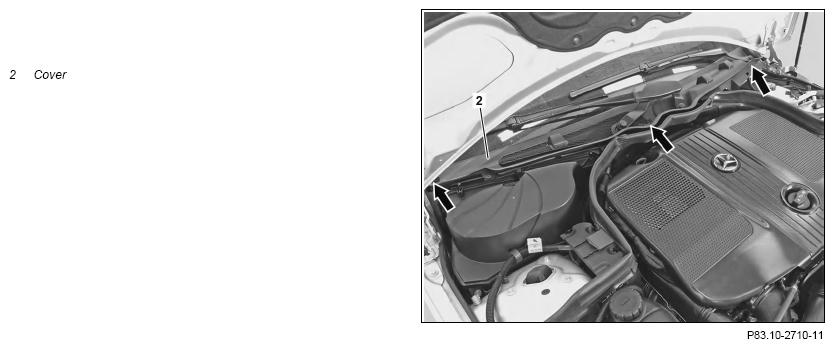

Shown on model 204, valid for model 204, 207, 212, 213, 218, 222, 231

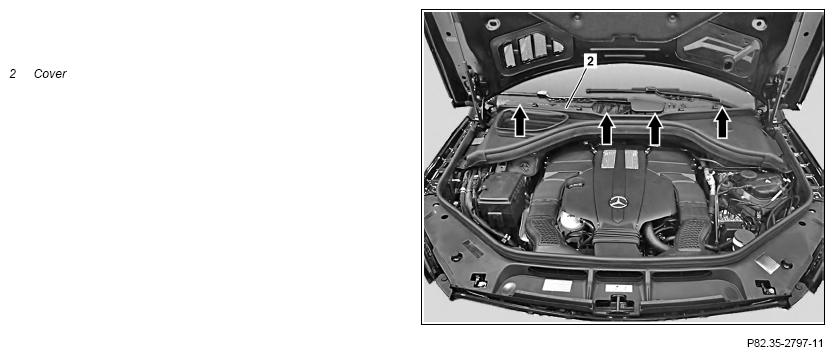

Shown on model 292, valid for model 166, 292

	Preparatory activity
1	Open engine hood and raise to vertical position	Model 166, 204, 207, 212, 213, 218, 222, 231, 238, 253, 292
		Model 166	AR88.40-P-1000GQ
		Model 204.3, 207, 212	AR88.40-P-1000EW
		Model 222 Model 204.3, 207, 212 Model 204.3, 207, 212 with code U60 (Active Bonnet (Pedestrian protection)) Moving the engine hood to the vertical position:  Remove left and right tensioning lever from upper left and right hinges.	AR88.40-P-1000LCA
	Clean
2	Check water drains (1) in cover (2) for signs of soiling, clean if necessary	Remove any soiling using a wet and dry vacuum cleaner.
	Finishing activity
3	Close engine hood	Model 166, 204, 207, 212, 213, 218, 222, 231, 238, 253, 292
		Model 166	AR88.40-P-1000GQ
		Model 204.3, 207, 212	AR88.40-P-1000EW
		Model 222 Model 204.3, 207, 212 with code U60 (Active Bonnet (Pedestrian protection)) Close engine hood:  Mount left and right clamping levers onto upper left and right hinges.	AR88.40-P-1000LCA
