Removing, Installing Windowbag - AR91.60-P-0693GQ
MODEL 166 (except 166.8) up to model year 2016
MODEL 166.8 as of model year 2016

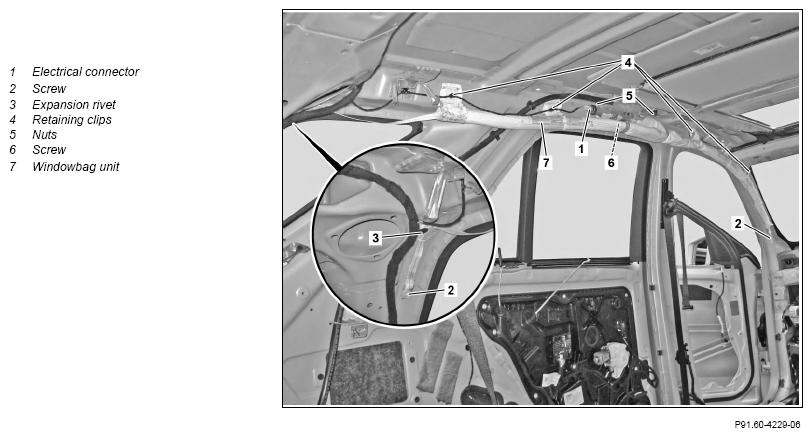

Shown on model 166.024

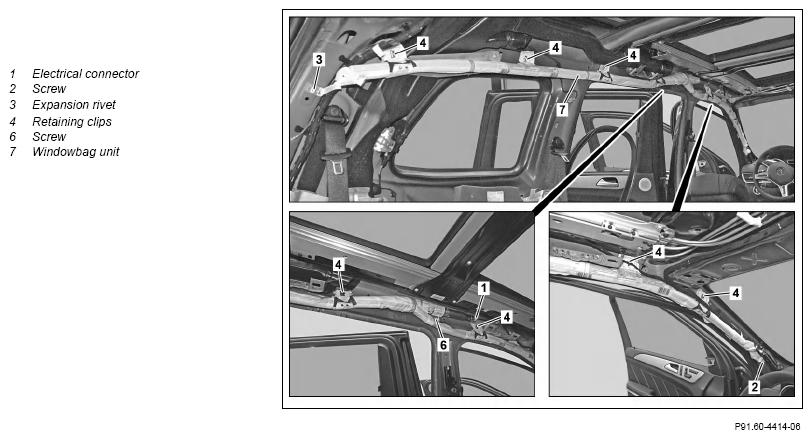

Shown on model 166.873
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect ground line to battery | AR54.10-P-0003GZ | |
| 3 | Remove headliner | Model 166 (except 166.8) up to model year 2016 with code Z05 (B5 armoring on special protection version) Model 166.8 as of model year 2016 with code Z05 (B5 armoring on special protection version) |
AR68.30-P-4300GQS |
| Model 166 (except 166.8) up to model year 2016 except code Z05 (B5 armoring on special protection version) Model 166.8 as of model year 2016 except code Z05 (B5 armoring on special protection version) |
AR68.30-P-4300GQ | ||
| 4 | Release and disconnect electrical connection (1) | ||
| 5 | Remove bolts (2) | *BA91.60-P-1005-01H | |
| 6 | Remove expansion rivets (3) | ||
| 7 | Move retaining clips (4) to one side and unclip | ||
| 8.1 | Unscrew nuts (5). | Model 166 (except 166.8) up to model year 2016 |
*BA91.60-P-1006-01H |
| 8.2 | Unscrew nut | Model 166.8 as of model year 2016 |
*BA91.60-P-1006-01H |
| 9 | Remove bolt (6) | *BA91.60-P-1006-01H | |
| 10 | Remove windowbag unit (7) | ||
| 11 | Install in the reverse order | ||
| Check | |||
| 12 |
Check and erase vehicle fault memory using the diagnostic system | When replacing windowbag unit (7). | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA91.60-P-1005-01H | Screw/bolt, windowbag check strap bracket to body | Nm | 8 |
AIRBAG
| Number | Designation | Model 166 | |
|---|---|---|---|
| BA91.60-P-1006-01H | Bolt/nut, windowbag to body | Nm | 8 |
