Removing And Installing Multi-Contour Seat Air Cushions - AR91.25-P-1770GQ
MODEL 166, 292
with CODE 399 (Multicontour front seats with massage function)
with CODE 401 (Climatised front seats)

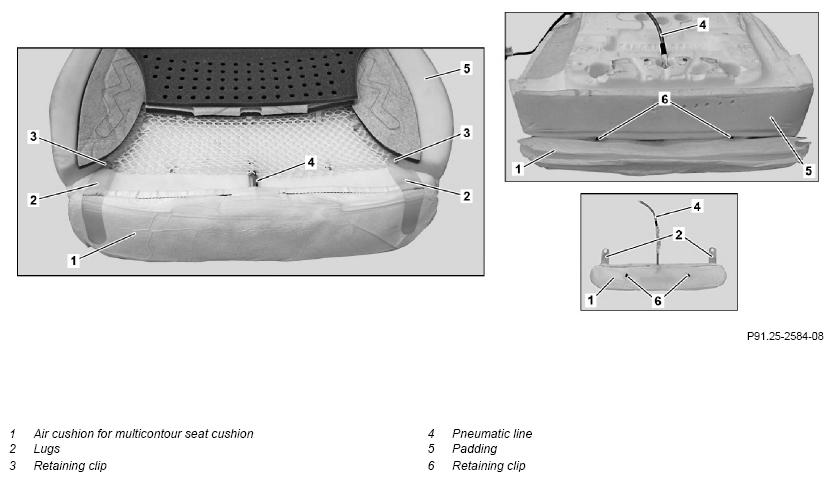

Shown on removed seat cushion cover with CODE 401 (Seat climate control)
| Remove/install | |||
| 1 | Remove seat cushion | AR91.10-P-3310GQ | |
| 2 | Detach cover in front area from front seat cushion until air cushion for multicontour seat cushion (1) is accessible | AR91.18-P-1800GQ | |
| 3 | Detach cover from padding at retaining clips (3) | ||
| 4 | Unhook lugs (2) on both sides of retaining clips (3) | Ensure that both lugs (2) are hooked correctly at the retaining clips (3). Slipping of the air cushion for multicontour seat cushion (1) is thus prevented. |
|
| 5 | Unclip retaining clips (6) of air cushion for multicontour seat cushion (1) from padding (5) | Carefully unclip retaining clips (6) from padding (5). Otherwise padding (5) may be damaged. |
|
| 6 | Guide pneumatic line (4) through padding (5) and remove air cushion for multicontour seat cushion (1) | ||
| 7 | Install in the reverse order |
