Remove/Install Rear Seat Sidebag Unit - AR91.60-P-0696GQ
MODEL 166
MODEL 292

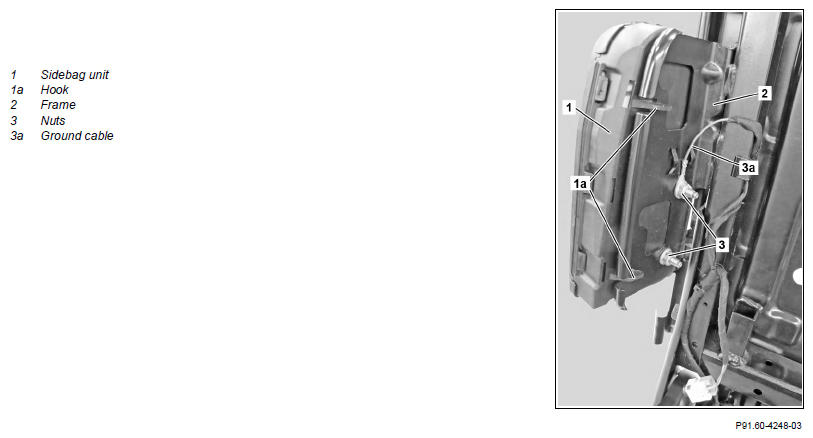

Shown on right backrest
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Move front seat as far forward as it will go | ||
| 3 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 4 | Loosen cover of left backrest until the sidebag unit (1) is accessible | When removing the left sidebag unit (1). Model 166 |
AR91.18-P-1874GQ |
| Model 292 | AR91.12-P-1800GQC | ||
| 5 | Loosen cover of right backrest until the sidebag unit (1) is accessible | When removing the right sidebag unit (1). Model 166 |
AR91.18-P-1878GQ |
| Model 292 | AR91.12-P-1800GQC | ||
| 6 | Unclip and disconnect electrical connector for sidebag unit (1) | ||
| 7 | Unscrew nuts (3) Notes on self-locking nuts and bolts |
AH00.00-N-0001-01A | |
| *BA91.60-P-1019-01H | |||
| 8 | Remove ground line (3a) | ||
| 9 | Swivel sidebag unit (1) out of the frame (2) and unhook the hooks (1 a) from the frame (2) | ||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 |
Read out the fault memory using the diagnostic system and clear if necessary | After replacing sidebag unit (1). | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1019-01H | Nut, sidebag to backrest frame | Nm | 7 | 7 |
