Remove/Install Rear Seat Belts - AR91.40-P-0681GQ
MODEL 166.0
without CODE Z05 (B5 armoring on special protection version)
| Remove/install | |||
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Risk of injury . Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on performing repair, body work and welding on vehicles with airbags and RTE units | AH91.00-P-0002-01M | ||
| Assessment of airbag and belt tensioner units in accident vehicles | AH91.00-P-0006-01B | ||
| 1 | Detach ground line from battery | AR54.10-P-0003GZ | |
| 2 | Remove trim from C-pillar | MODEL 166 (except 166.8) without CODE Z05 (B5 armoring on special protection version) |
AR68.30-P-4490GQ |

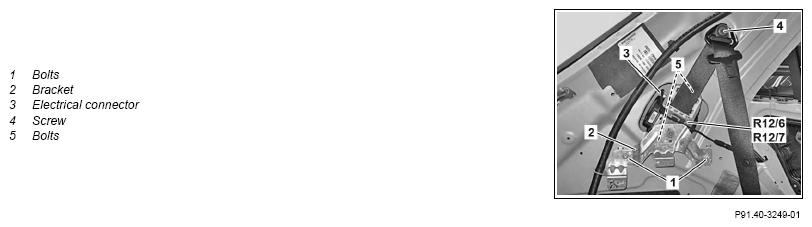

| 3 | Remove bolt (1) | ||
| 4 | Remove bracket (2) | ||
| 5 | Disconnect electrical connector (3) | ||
| 6 | Remove screw/bolt (4) | *BA91.40-P-1010-01R | |
| 7 | Remove bolts (5) | *BA91.40-P-1008-01R | |
| 8 | Remove seat belt | ||
| 9 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA91.40-P-1008-01R | Screw, automatic belt retractor to C-pillar | Nm | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | MODEL 166 | |
|---|---|---|---|
| BA91.40-P-1010-01R | Screw, seat belt guide bracket to C-pillar | Nm | 35 |
