Remove/Install Passenger Airbag Unit - AR91.60-P-0680GQ
MODEL 166, 292
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100 °C or 212 °F. Disconnect current supply when working on such component parts. |
AS91.00-Z-0008-01A | |
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Disconnect battery ground line | AR54.10-P-0003GZ | |
| 3 | Remove top part of dashboard | AR68.10-P-1020GQ | |
| 4 | Remove air duct (3) | ||
| 5 | Unscrew nuts (5) from instrument panel upper section | *BA91.60-P-1009-01H | |

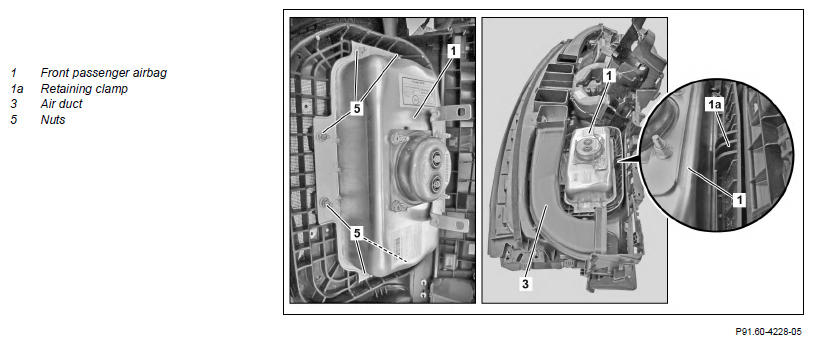

| 6 | Remove front passenger airbag (1) | ||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 |
Check and erase vehicle fault memory using diagnostic system | When replacing the front passenger airbag (1) | AD00.00-P-2000-04A |
AIRBAG
| Number | Designation | Model 166 | Model 292 | |
|---|---|---|---|---|
| BA91.60-P-1009-01H | Nut, front passenger airbag unit to instrument panel | Nm | 7 | 7 |
