Remove/Install Head Restraint Guide On Front Seat - AR91.16-P-0050GQC

MODEL 166 as of model year 2016

MODEL 292

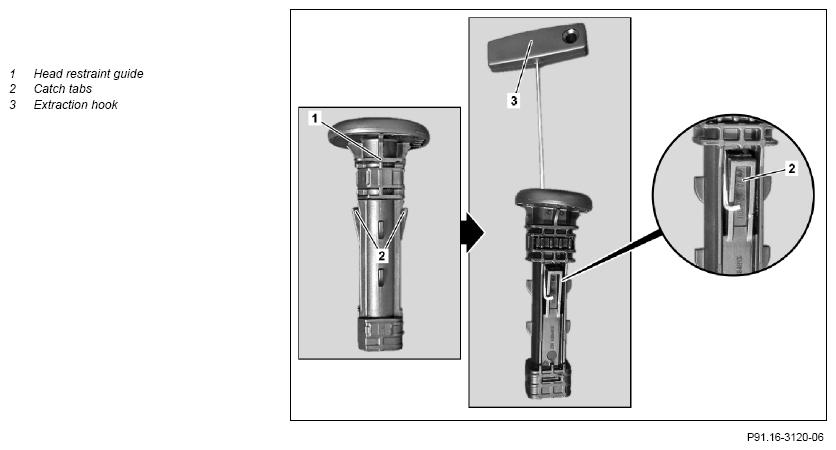

G11970701
REMOVINGINSTALLING Remove/install
1 Remove front seat head restraint Model 166
as of model year 2016
except code 399 (Multicontour front seats with massage function)
Model 292
except code 399 (Multicontour front seats with massage function)
AR91.16-P-0040GQA
Model 166
as of model year 2016
with code 399 (Multicontour front seats with massage function)
Model 292
with code 399 (Multicontour front seats with massage function)
AR91.16-P-0040GQ
2 Insert extraction hook (3) into head restraint guide (1) and release catch tabs (2) from inside
3 Pull head restraint guide (1) out upwards INSTALLATION IMPORTANT Note installation position of head restraint guide (1).
4 Install in the reverse order
