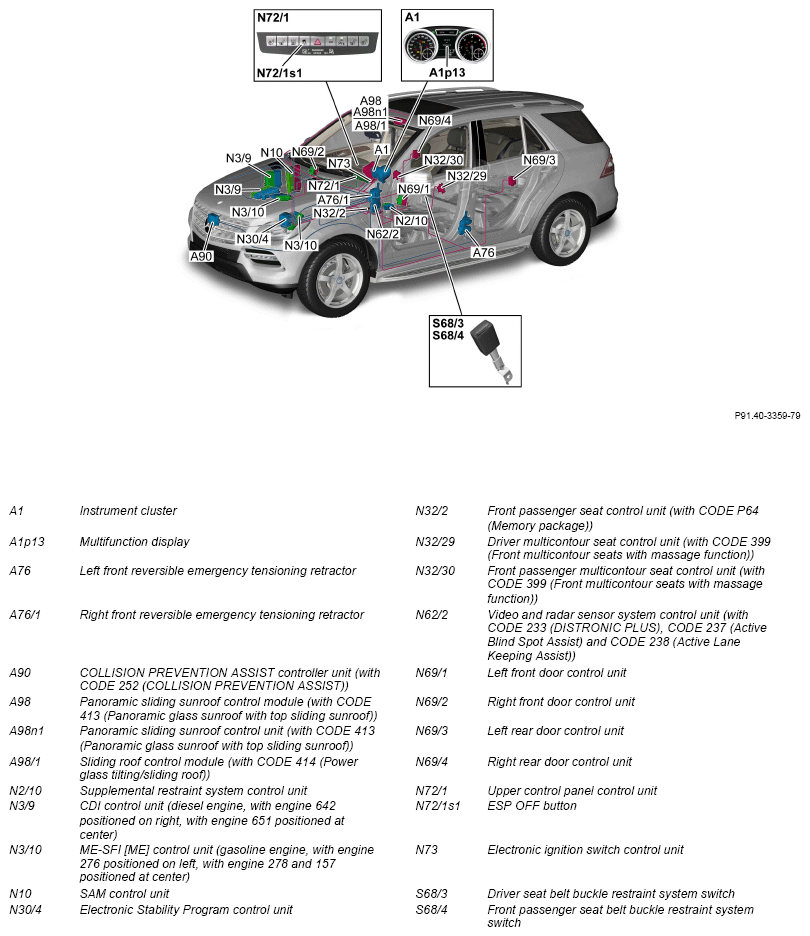

Overview Of Pre-Safe System Components - GF91.40-P-9997GR
MODEL 166 up to model year 2016
Illustrated on model 166.0
| Component description for instrument cluster | A1 | GF54.30-P-6000GR | |
| Component description for front reversible emergency tensioning retractors | A76, A76/1 | GF91.40-P-4020GR | |
| COLLISION PREVENTION ASSIST controller unit, component description | MODEL 166 up to model year 2016 with CODE 252 (COLLISION PREVENTION ASSIST) A90 |
GF30.30-P-3214GR | |
| Component description for panoramic sliding roof control module | MODEL 166 up to model year 2016 with CODE 413 (Panoramic glass roof with top sliding roof) A98, A98n1 |
GF77.20-P-4106GR | |
| Component description for sliding roof control module | MODEL 166 up to model year 2016 with CODE 414 (Power glass tilting/sliding roof) A98/1 |
GF77.20-P-4108GR | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080GR | |
| Component description for CDI control unit | MODEL 166 with ENGINE 642.8 up to model year 2016 N3/9 |
GF07.16-P-6000OGR | |
| MODEL 166 with ENGINE 651.9 up to 2/28/13 up to model year 2014 N3/9 |
GF07.16-P-6000OLG | ||
| MODEL 166 with ENGINE 651.9 as of 3/1/13 up to model year 2016 N3/9 |
GF07.16-P-6000OLL | ||
| Component description for ME-SFI (ME) control unit | MODEL 166 with ENGINE 157.9, 278.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMR | |
| MODEL 166 with ENGINE 276.8 up to model year 2016 N3/10 |
GF07.61-P-6000MMU | ||
| MODEL 166 with ENGINE 276.9 up to model year 2016 N3/10 |
GF07.61-P-6000MMG | ||
| SAM control unit, component description | N10 | GF54.21-P-4157GR | |
| Component description for Electronic Stability Program control unit | N30/4 | GF42.45-P-5119GR | |
| Component description for front passenger seat control unit | MODEL 166 up to model year 2016 with CODE P64 (Memory package) N32/2 |
GF91.29-P-5241GR | |
| Multicontour seat control unit (MCS), component description | MODEL 166 up to model year 2016 with CODE 399 (Multicontour front seats with massage function) N32/29, N32/30 |
GF91.25-P-5201GR | |
| Component description for video and radar sensor system control unit | MODEL 166 up to model year 2016 with CODE 233 (DISTRONIC PLUS) with CODE 237 (Active Blind Spot Assist) with CODE 238 (Active lane keeping Assist) N62/2 |
GF30.30-P-3304GR | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001GR | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009GR | |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021GR | |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040GR | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001GR | |
| Table of contents for PRE-SAFE function description | GF91.40-P-0997GR |
