Remove/Install Retaining Frame Controls In Dashboard Center Section - AR68.10-P-1031GQ

MODEL 166

	Remove/install

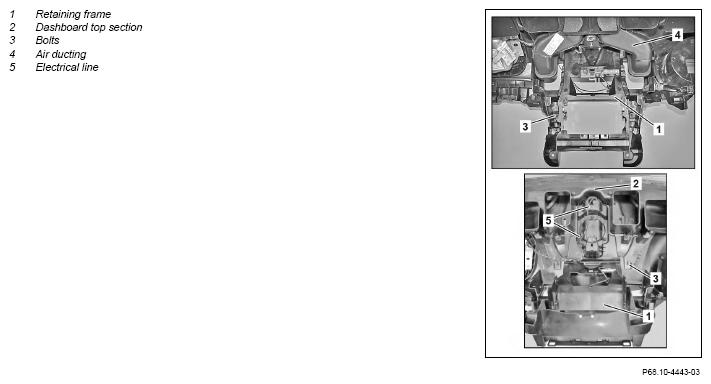

1	Remove dashboard top section (2)		AR68.10-P-1020GQ
2	Remove air ducting (4)
3	Unclip electrical lines (5) from holding frame (1)
4	Remove bolt (3)	: Loosely screw all bolts (3) into instrument panel top section (2), then tighten all bolts (3)
5	Remove retaining frame (1)
6	Install in the reverse order
