Remove/Install Cover On Center Console - AR68.20-P-2350GQA

MODEL 166 as of model year 2016

MODEL 292

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

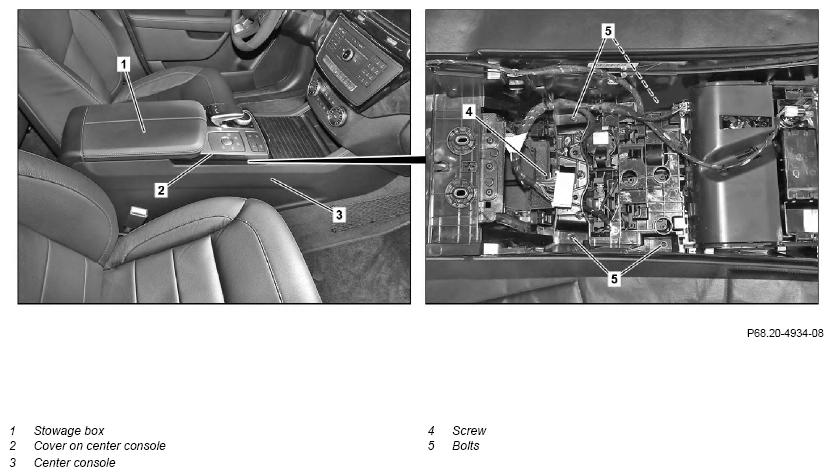

1	Remove center console (3)		AR68.20-P-2000GQ
2	Remove stowage box (1)		AR68.20-P-2320GQ
3	Loosen screw (4)
4	Remove screws (5)

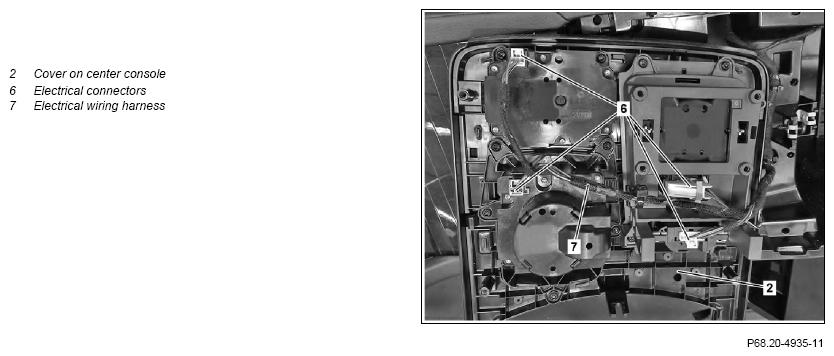

5	Remove cover on center console (2) until electrical connectors (6) are accessible
6	Disconnect electrical connectors (6) and unclip electrical wiring harness (7)
7	Remove cover at center console (2)
8	Install in the reverse order
