Remove/Install Cover On Center Console - AR68.20-P-2350GQ
MODEL 166 up to model year 2016
Shown model 166 with code 430 (Head restraints in rear) and with code 489 (AIRMATIC)
| Remove/install | |||
| 1 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove stowage box | AR68.20-P-2320GQ | |

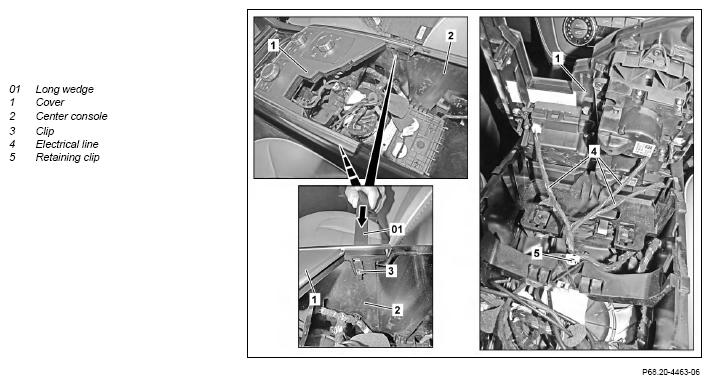

| 3 | Position long wedge (01) between cover (1) and center console (2) on clips (3) | Figure | |
| 4 | Press in long wedge (01) (arrow) and unclip clip (3) from center console (2) | Figure | |
| 5 | Unclip cover (1) from center console (2) at rear | ||
| 6 | Lift cover (1) at rear and unclip retaining clips (5) | ||
| 7 | Disconnect electrical connectors on electrical lines (4) from cover (1) | ||
| 8 | Unclip cover (1) at front from center console (2) and remove | ||
| 9 | Install in the reverse order |
