Retrofit Safety Net - AZ68.50-P-0009GQ

MODEL 166.0

	Remove
1	Detach edge guard (5) in upper area of rear doors
	Install
2	Retrofit left and right mounting support (2)		AZ68.50-P-0009-02GQ
3	Install left and right rear grab handle (3) on roof		AR68.30-P-4330GQ
4	Fold left and right seat cushion toward front
5	Retrofit left and right mounting console (4)		AZ68.50-P-0009-01GQ
	Screw/bolt, tie-down eye to body/trunk floor		*BA68.50-P-1002-03F
	Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint		*BR00.45-Z-1001-07A
6	Fold over left and right seat backrest toward front

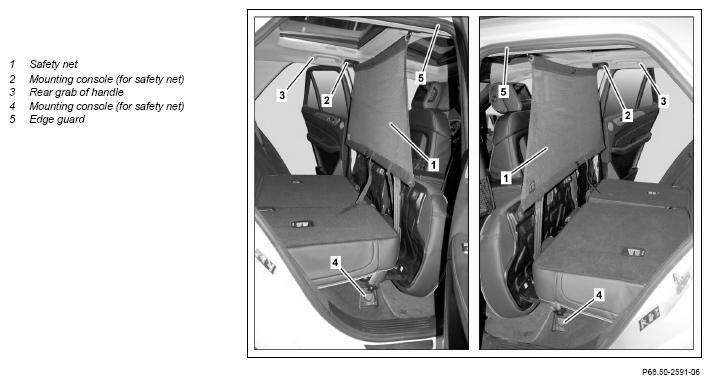

7	Hook safety net (i) into mounting consoles (2, 4) and tension	Tension safety net (1) only when seat backrest is folded toward front. If the safety net (1) is tensioned first and then backrests are folded toward front, the excessive tension of the safety (1) can result in deformation of the mounting consoles (2). Explain customer procedure for tensioning safety net (1) when submitting vehicle.
	Update Vehicle Documentation (VeDoc)
8	Attach note for safety net according to AZ68.50-P-0009GQ retrofitted under field organization text to design group 68 and 69

CARGO RETAINERS

Number	Designation		Model 166
BA68.50-P-1002-03F	Screw/bolt, tie-down eye to body/trunk floor	Nm	24

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding, replaced by A 000 986 28 00 1K zinc dust paint	A 000 986 34 42

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98	Partition net	1
