Remove/Install Fan Unit - AR20.40-P-5050MNG

Engine 177 in model 253

G12817300Courtesy of MERCEDES-BENZ USA

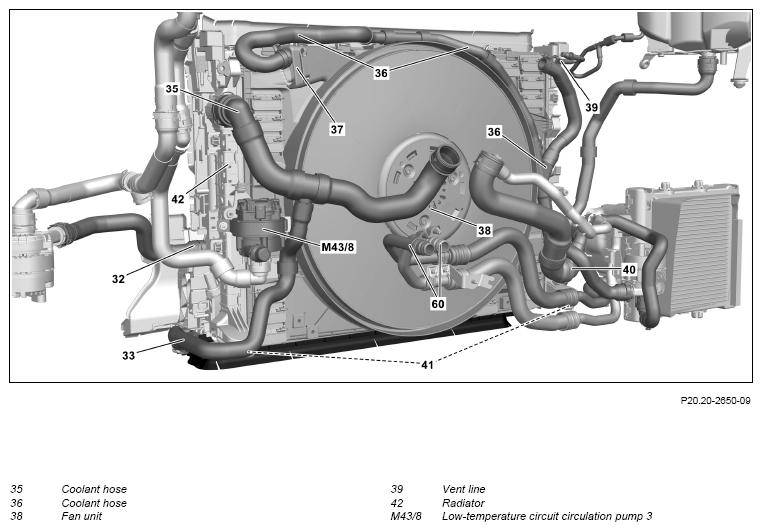

Fig 1: Cooling Fan Component Location - Engine 177
G12817301Courtesy of MERCEDES-BENZ USA
Fig 2: Low Temperature Circuit Coolant Pump Component Location - Engine 177
G12817302Courtesy of MERCEDES-BENZ USA
WARNING Risk of injury  to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning  from swallowing coolant. Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers.
Wear protective gloves, protective clothing and safety glasses.
AS20.00-Z-0001-01A
WARNING Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. AS00.00-Z-0017-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on coolant   AH20.00-N-2080-01A
  Notes on avoiding damage through contamination and foreign objects   AH00.00-P-5000-01A
REMOVINGINSTALLING Remove/install
1 Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2 Remove upper engine cover INSTALLATION IMPORTANT Only install upper engine cove after the leak test.

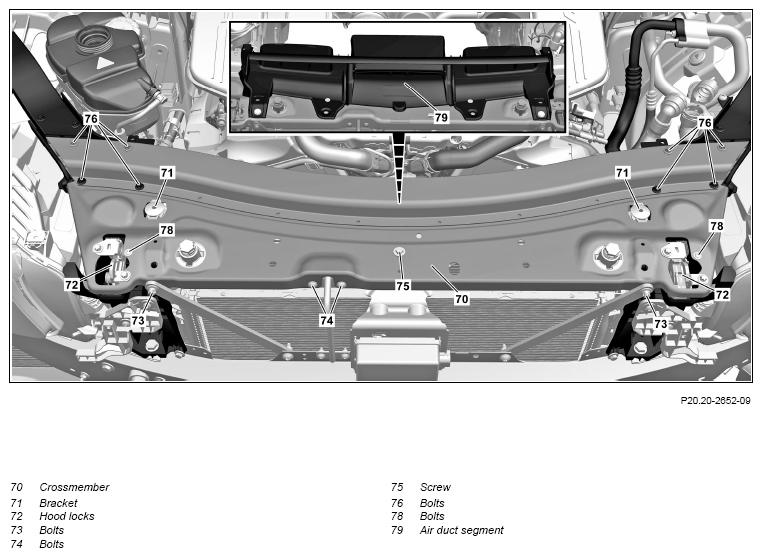

3 Remove retaining clips of air duct segment (79) on crossmember (70)
4 Remove screws of hood locks (72) TORQUE SPECIFICATION Bolt, lock striker to cross member/front-module carrier *BA62.30-P-1008-01H
5 Remove screws (73, 74, 75, 76) TORQUE SPECIFICATION Bolt, strut to cross member *BA62.30-P-1003-01H
    TORQUE SPECIFICATION Bolt, front module carrier to cross member *BA62.30-P-1010-01H
6 Remove screw (78)
7 Remove brackets (71)
8 Pull hood locks (72) out of crossmember (70) and remove crossmember (70) upward
9 Drain off coolant in the low-temperature circuit   AR09.41-P-6834MNG
INSTALLATION IMPORTANT Only install lower engine compartment paneling after leak test.
10 Drain off coolant   AR20.00-P-1142MNG
11 Release and disconnect electrical connector at fan unit (38)
12 Remove coolant line (36) from left charge air cooler SPECIAL TOOL Hose clamp pliers Fig 3
13 Remove coolant line (36) from fan unit (38) TORQUE SPECIFICATION M6x1 *BA00.10-P-1002-04A
14 Remove bleed line (39) at cooler (42)   AR20.20-P-7441-01RQ

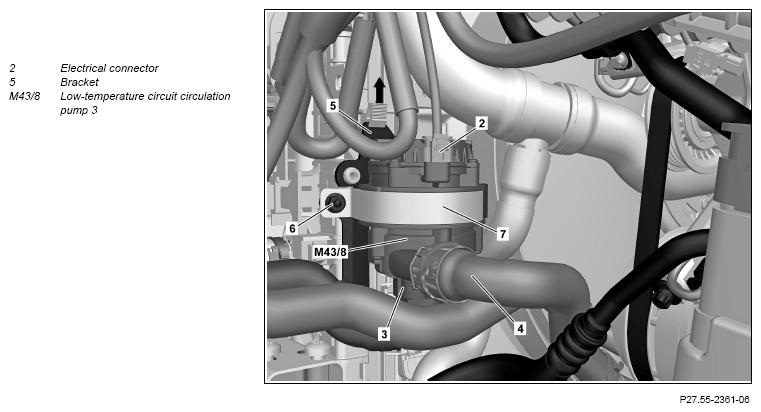

15 Release and disconnect electrical connection (2)
16 Press clamp (arrow) and remove low-temperature circuit circulation pump 3 (M43/8)
17 Unhook fan unit (38) from cooler (42) and remove upward
18 Mount protective plate on cooler (42)
    REFER TO SHOP-MADE TOOLS WF58.50-P-0110-04A
19 Install in the reverse order
WARNING Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running. Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. AS00.00-Z-0005-01A
20 Perform an engine test run and check engine for proper operation and leaktightness
21 Install lower engine compartment paneling   AR61.20-P-1105LW
22 Install upper engine cover
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143

Number Designation 8.8 10.9
BA00.10-P-1002-04A M6 x 1 Nm 9 13
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1003-01H Bolt, strut to cross member M8 Nm 20
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1008-01H Bolt, lock striker to cross member/front-module carrier Nm 10
CROSS MEMBER AND FRONT REINFORCEMENT

Number Designation Model 253
BA62.30-P-1010-01H Bolt, front module carrier to cross member M6 Nm 3
Fig 3: Identifying Hose Clamp Pliers (003 589 03 37 00)
G11065562Courtesy of MERCEDES-BENZ USA
