Remove/Install Charger Feed Socket - AR54.10-P-5109LVH
Model 253.354/954
Shown on model 253.954
Shown on model 253.954
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear bumper | AR88.20-P-2200LWG | |
| 2 | Remove charger feed socket flap (6) | AR54.10-P-5110LVH | |
| 3 | Perform disable for the high-voltage on-board electrical system | AR54.10-P-1150LVH | |
| Check protective earth conductor and insulation resistance on high voltage on-board electrical system |
AR54.10-P-1160-01LVH | ||
| Figure | |||
| Figure | |||
| 4 | Fold up load compartment floor and hook into place | ||
| 5 | Remove load compartment well lining | ||

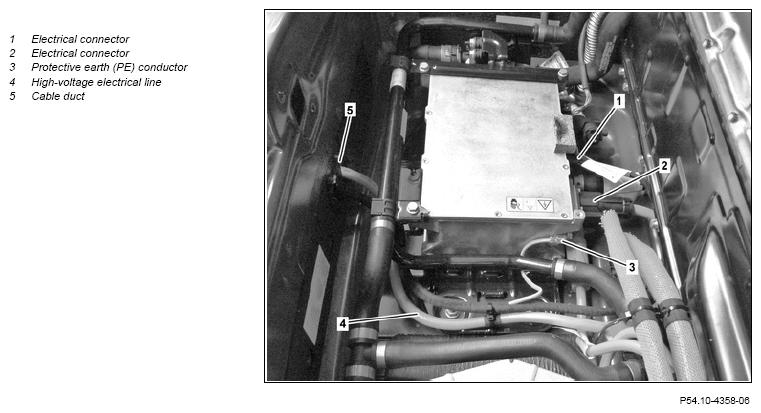

| 6 | Disconnect electrical connection (1) | ||
| 7 | Disconnect electrical connection (2) | ||
| 8 | Remove PE protective earth conductor (3) | *BA54.10-P-1012-02H | |
| 9 | Unclip high-voltage electrical line (4) along the load compartment floor and route to cable duct (5) | ||
| 10 | Unclip cable duct (5) from rear end panel and route high-voltage electrical line (4) to outside of vehicle | ||

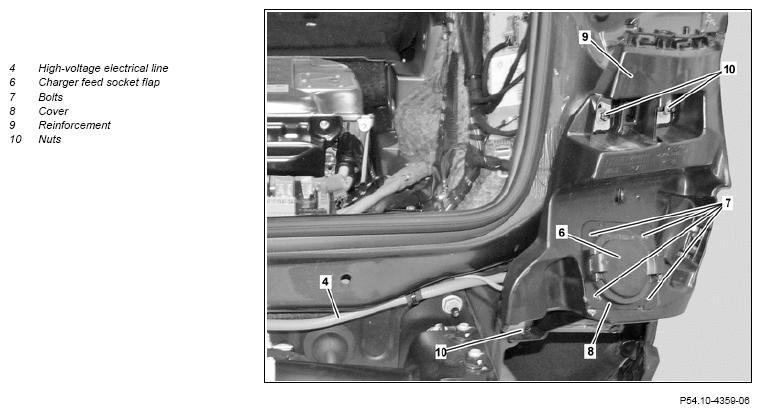

| 11 | Remove bolts (7) and take off cover (8) | *BA54.10-P-1020-02H | |

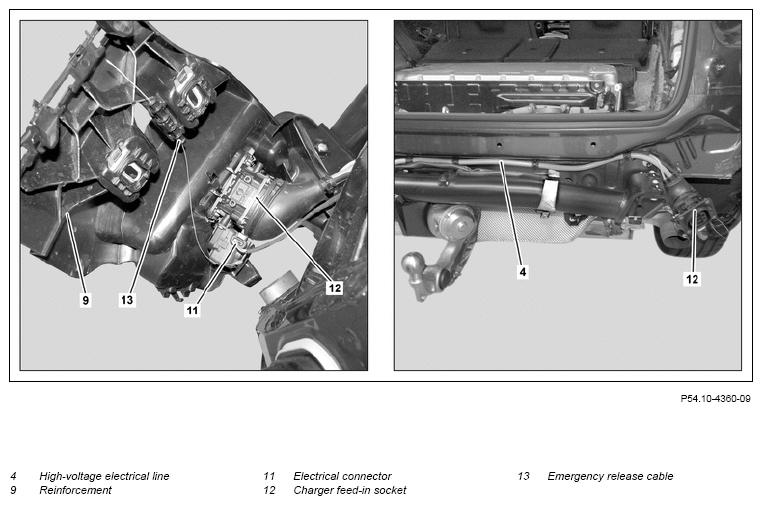

| 12 | Unscrew nuts (10) and remove reinforcement (9) until charger feed socket (12) is accessible | Four nuts (10) are installed. |
|
| 13 | Disconnect electrical connection (11) | ||
| 14 | Unhook emergency release cable (13) | ||
| 15 | Unclip charger feed socket (12) and reinforce reinforcement (9) | ||
| 16 | Unclip high-voltage electrical line (4) with charger feed socket (12) from basic carrier and remove | ||
| 17 | Install in the reverse order |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME02 (Fuel cell) | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | |
|---|---|---|---|---|
| BA54.10-P-1012-02H | Bolt, protective earth conductor to charger | Nm | - | 9 |
HIGH-VOLTAGE BATTERY
| Number | Designation | Model 253 with code ME02 (Fuel cell) | Model 253 with code ME05 (Hybrid drive 85 kW-94 kW variant (incl. plug-in)) | |
|---|---|---|---|---|
| BA54.10-P-1020-02H | Screw/bolt, vehicle socket to rear bumper | Nm | 5 | 5 |
