Remove/Install Charger Feed Socket Flap - AR54.10-P-5110LVH
Model 253.311/353/354/911/953/954
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system | AH00.00-Z-0300-01A | ||
| Notes on battery | AH54.10-P-0001-01A | ||
| Remove | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (at least 2 m) | ||

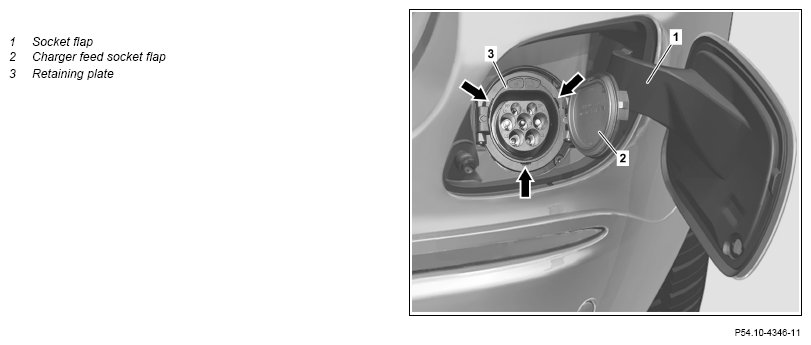

| 2 | Open socket flap (1) in the rear bumper | ||
| 3 | Open the charger feed socket flap (2) | ||
| 4 | Release retaining plate (3) at catches (arrows) and remove retaining plate (3) with charger feed socket flap (2) | ||
| Install | |||
| 5 | Position retaining plate (3) with charger feed socket flap (2) on charger feed socket and press it down until catches (arrows) engage | ||
| 6 | Close the charger feed socket flap (2) | ||
| 7 | Close socket flap (1) in the rear bumper |
