Remove/Install Liftgate - AR72.20-P-1020LWX

Model 253.3

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on HANDS-FREE ACCESS	Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO)	AH80.61-P-0001-01A
	Remove/install

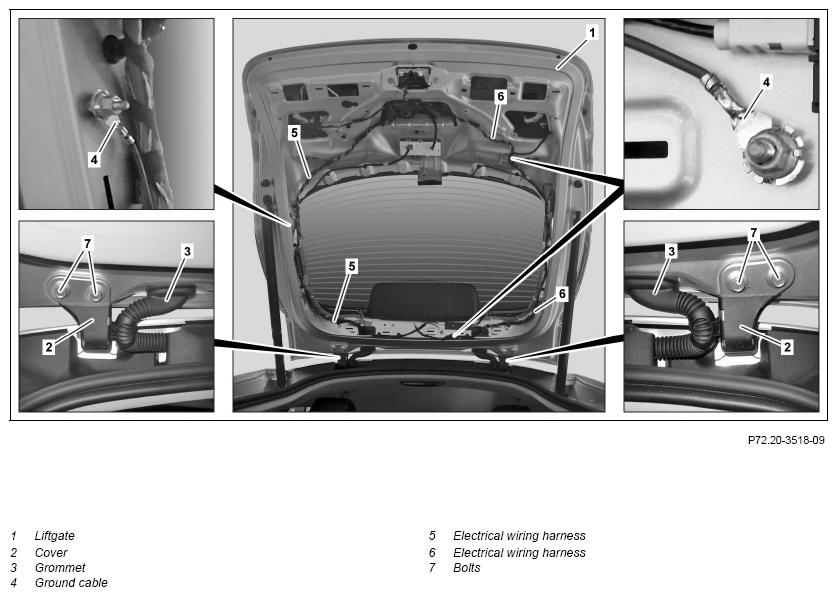

1	Remove upper liftgate paneling		AR72.20-P-6631LWG
2	Mechanically lock rotary tumbler on liftgate lock with suitable screwdriver	Otherwise, the liftgate (1) can no longer be opened when the electrical lines are disconnected. : Before adjusting liftgate (1), release rotary tumbler on liftgate latch.
3	Remove both covers (2) from hinges
4	Pull both grommets (3) out of liftgate (1)	Carefully pull out grommets (3). Otherwise the electrical lines inside can be damaged. : Make sure that grommets (3) are seated correctly.
5	Remove ground lines (4)
	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Nut, ground point for rear window	*BA00.19-P-1044-01E
		Right tailgate ground point	*BA00.19-P-1039-01E
		Upper right liftgate ground point	*BA00.19-P-1040-01E
6	Disconnect electrical connectors from left electrical wiring harness (5) and right electrical wiring harness (6)	The number of electrical connectors may vary depending on the equipment.
7	Expose left electrical wiring harness (5) and right electrical wiring harness (6) on liftgate (1)	Note installation position of left electrical wiring harness (5) and right electrical wiring harness (6).
8	Guide left electrical wiring harness (5) and right electrical wiring harness (6) out of liftgate (1)	Carefully guide out left electrical wiring harness (5) and right electrical wiring harness (6). Otherwise the electrical connectors can be damaged.
9	Remove gas-filled strut from liftgate (1)		AR72.20-P-2832LW
		Model 253.3 with code 890 (EASY-PACK-tailgate) Only one gas-filled strut is installed.
10	Remove drive unit of liftgate (1)	Model 253.3 with code 890 (EASY-PACK-tailgate)
			AR72.29-P-5590LWX
11	Unscrew bolts (7) and remove liftgate (1)	: Only tighten bolts (7) after adjusting liftgate (1). Helper required.
12	Install in the reverse order
	Adjust
13	Adjust liftgate (1)		AR72.20-P-0002LWX

GROUND POINTS

Number	Designation			Model 253 (except 253.99)
BA00.19-P-1039-01E	Right tailgate ground point	W8/2	Nm	10

GROUND POINTS

Number	Designation			Model 253 (except 253.99)
BA00.19-P-1040-01E	Upper right liftgate ground point	W8/12	Nm	10

GROUND POINTS

Number	Designation			Model 253 (except 253.99)
BA00.19-P-1044-01E	Nut, ground point for rear window	M6	Nm	10
