Adjust Liftgate - AR72.20-P-0002LWX
Model 253.3
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on sensor system for trunk lid opening/closing | Model 253.3 with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Check | |||
| 1 | Check gap dimension on liftgate (1) | AR60.00-P-0700-01LW | |
| Roof to rear spoiler/liftgate | *BE60.00-P-1012-01FA | ||
| Sidewall to liftgate | *BE60.00-P-1013-01FA | ||
| Outside of taillamp to inside of taillamp | *BE60.00-P-1014-01FA | ||
| Center of liftgate to rear bumper | *BE60.00-P-1015-01FA | ||
| Outside of liftgate to rear bumper | *BE60.00-P-1016-01FA | ||
| Fig 1 | |||
| Remove | |||

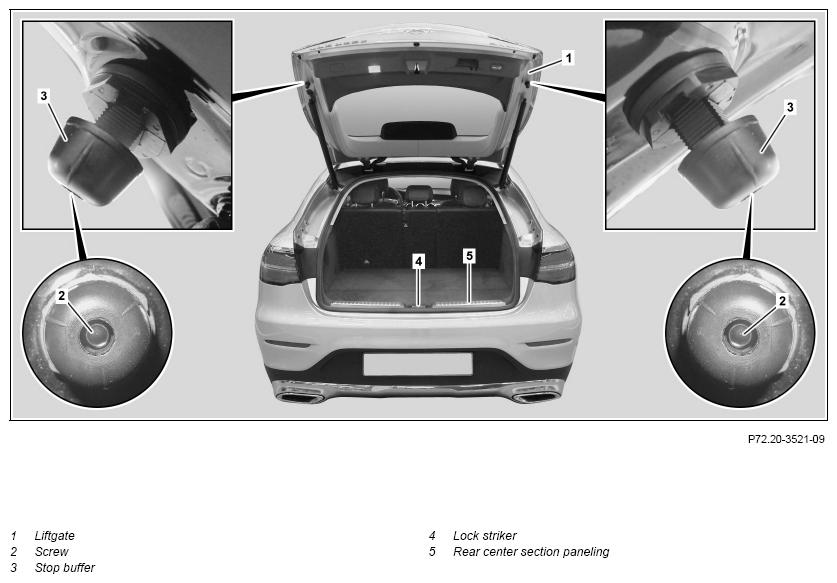

| 2 | Loosen bolts (2) and completely push back stop buffers (3) | ||
| 3 | Remove rear center section paneling (5) | AR68.30-P-4785LWS | |
| 4 | Remove lock striker (4) | ||
| 5 | Remove gas-filled struts | AR72.20-P-2832LW | |
with code 890 (EASY-PACK-tailgate) Only one gas-filled strut is installed. |
|||
| 6 | Remove drive unit from electrical liftgate | Model 253.3 with code 890 (EASY-PACK-tailgate) |
|
| AR72.29-P-5590LWX | |||
| Adjust | |||

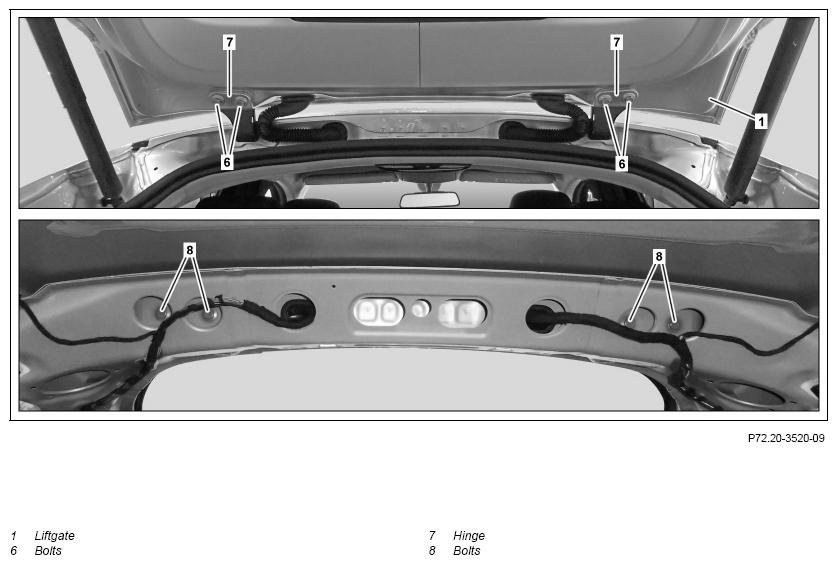

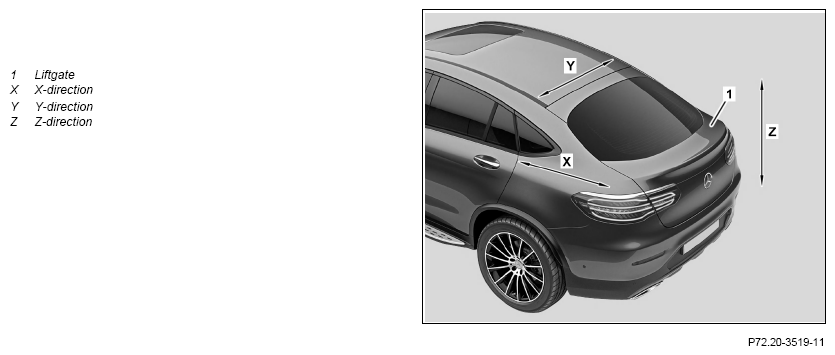

| 7 | Loosen bolts (6) on left or right hinge (7) | When it is necessary to adjust the liftgate (1) in the x-direction (X) or y-direction (Y). | |
| 8 | Adjust liftgate (1) in the x-direction (X) or y-direction (Y) | When it is necessary to adjust the liftgate (1) in the x-direction (X) or y-direction (Y). | |
| Roof to rear spoiler/liftgate | *BE60.00-P-1012-01FA | ||
| Sidewall to liftgate | *BE60.00-P-1013-01FA | ||
| Outside of taillamp to inside of taillamp | *BE60.00-P-1014-01FA | ||
| Outside of liftgate to rear bumper | *BE60.00-P-1016-01FA | ||
| Fig 1 | |||
| 9 | Tighten bolts (6) on hinges (7) | When the liftgate (1) was adjusted in the x-direction (X) or y-direction (Y). |
|
| *BA72.20-P-1002-02N | |||
| 10 | Repair paint damage on bolts (6) with appropriate touch-up paint pen | When the liftgate (1) was adjusted in the x-direction (X) or y-direction (Y). | |
| 11 | Remove headliner | If the liftgate (1) has to be adjusted in the z-direction (Z). | |
| AR68.30-P-4300LWS | |||
| 12 | Loosen bolts (8) on left or right hinge (7) | If the liftgate (1) has to be adjusted in the z-direction (Z). | |
| 13 | Adjust transition between liftgate (1) and roof frame in z-direction (Z) i4 |
If the liftgate (1) has to be adjusted in the z-direction (Z). Top edge of liftgate (1) must be flush with roof frame. Observe dimension "U1". |
|
| Center of liftgate to rear bumper | *BE60.00-P-1015-01FA | ||
| Fig 1 | |||
| 14 | Tighten bolts (8) on hinges (7) | When the liftgate (1) was adjusted in the z-direction (Z). |
|
| *BA72.20-P-1001-02N | |||
| Install | |||
| 15 | Install gas-filled struts | AR72.20-P-2832LW | |
with code 890 (EASY-PACK-tailgate) Only one gas-filled strut is installed. |
|||
| 16 | Insert lock striker (4) and screw in bolts to stop | ||
| Adjust | |||
| 17 | Adjust transitions between liftgate (1) and edges of sidewalls and D-pillars by moving lock striker (4) | ||
| 18 | Tighten bolts on lock striker (4) | *BA72.20-P-1003-02N | |
| 19 | Pull out stop buffer (3) to end of notch | ||
| 20 | Carefully close liftgate (1) and open again | ||
| 21 | Pull stop buffer (3) out two notches | Model 253.3 except code 890 (EASY-PACK-tailgate) |
|
| 22 | Tighten bolts (2) | ||
| Install | |||
| 23 | Install drive unit on electrical liftgate | Model 253.3 with code 890 (EASY-PACK-tailgate) |
|
| AR72.29-P-5590LWX | |||
| 24 | Install rear center section paneling (5) | AR68.30-P-4785LWS | |
| 25 | Install headliner | When the liftgate (1) was adjusted in the z-direction (Z). | |
| AR68.30-P-4300LWS | |||
| Calibrate | |||
| 26 | Calibrate 360° rear camera with diagnostic system | Model 253.3 with code 501 (360° camera) |
|
| AD00.00-P-2000-04B |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 253.3 | ||
|---|---|---|---|---|
| BE60.00-P-1012-01FA | Roof to rear spoiler/liftgate | Dimension "Q" | mm | - |
| - | - | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 253.3 | ||
|---|---|---|---|---|
| BE60.00-P-1013-01FA | Sidewall to liftgate | Dimension "S" | mm | - |
| - | - | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 253.3 | ||
|---|---|---|---|---|
| BE60.00-P-1014-01FA | Outside of taillamp to inside of taillamp | Dimension "T" | mm | 3, 5 (+1, 5/-1) |
| For picture, see | AR60.00-P-0700-01LW | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 253.3 | ||
|---|---|---|---|---|
| BE60.00-P-1015-01FA | Center of liftgate to rear bumper | Dimension "U1" | mm | - |
| Dimension "M1" | mm | 6, 0 (±1, 5) | ||
| For picture, see | AR60.00-P-0700-01LW | |||
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 253.3 | ||
|---|---|---|---|---|
| BE60.00-P-1016-01FA | Outside of liftgate to rear bumper | Dimension "U2" | mm | - |
| Dimension "M" | mm | 3, 5 (+1, 5/-1) | ||
| For picture, see | AR60.00-P-0700-01LW | |||
LIFTGATE
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA72.20-P-1001-02N | Bolt, hinge for liftgate to roof frame | Nm | 40 |
LIFTGATE
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA72.20-P-1002-02N | Bolt, liftgate hinge to liftgate | Nm | 32 |
LIFTGATE
| Number | Designation | Model 253 | |
|---|---|---|---|
| BA72.20-P-1003-02N | Screw/bolt, lock striker for liftgate to rear center section | Nm | 9 |
